Product Model

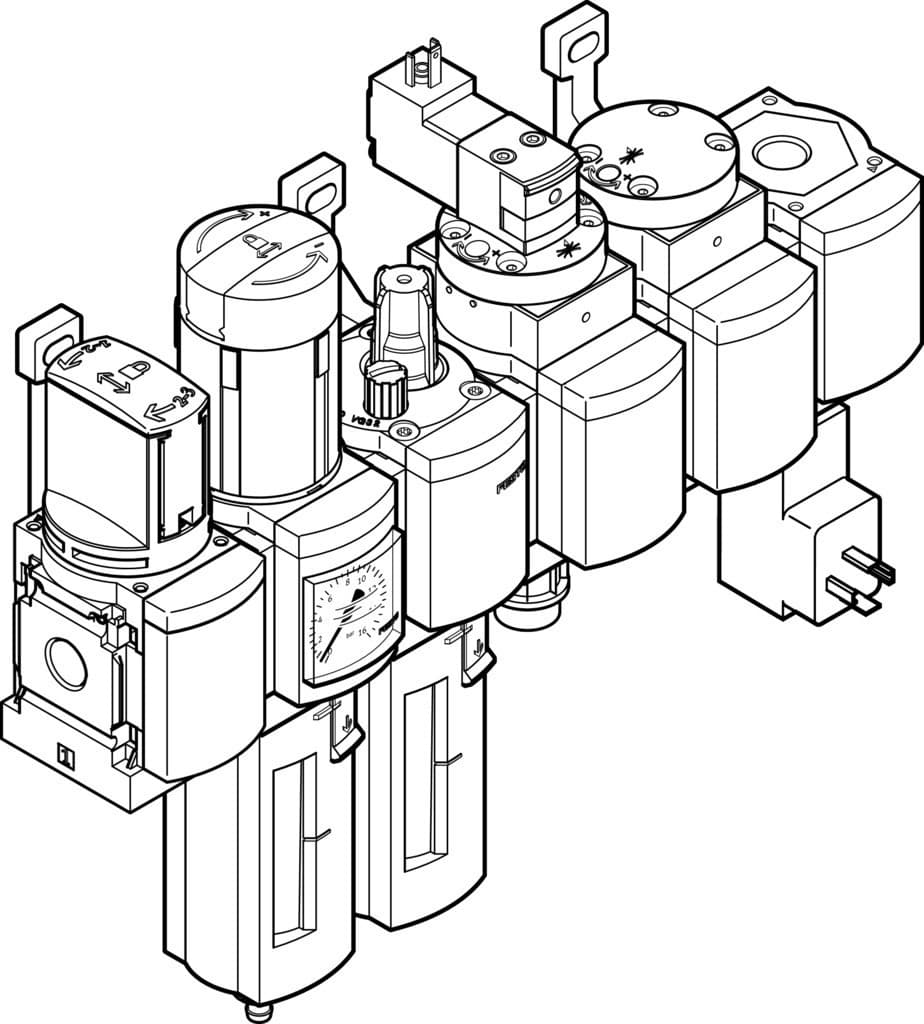

msb4n-1/4:c3j4m1d7a1f3-wp
Selling Points
- 1The MSB4N-1/4:C3J4M1D7A1F3-WP service unit combination includes a 5 μm filter, ensuring high-grade filtration and maintaining optimal compressed air quality for industrial applications.
- 2Equipped with a manual on/off valve and a filter/regulator, this service unit allows for easy control and regulation of compressed air, enhancing operational efficiency and reliability.
- 3Designed for vertical mounting with a +/-5° angle, the MSB4N-1/4:C3J4M1D7A1F3-WP service unit offers flexibility in installation, making it suitable for various industrial settings.
- 4The unit features a lockable regulator head and a plastic bowl guard with a plastic basket guard, ensuring safe operation and protecting against potential hazards.
- 5Including a branching module with a pressure switch but without display, this service unit provides a comprehensive solution for managing compressed air in industrial environments, ensuring smooth operation and efficient flow control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic |
Structural design | Branching module Soft start valve Pressure switch Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991759 |
Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 10bar |
Pressure regulation range | 4bar 9bar | Standard nominal flow rate | 550l/min |
Coil characteristics | 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:-] |
Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
Product weight | 2200g | Type of mounting | With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/4 1/4 NPT | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 550490 |
Specifications may be subject to change without notice
