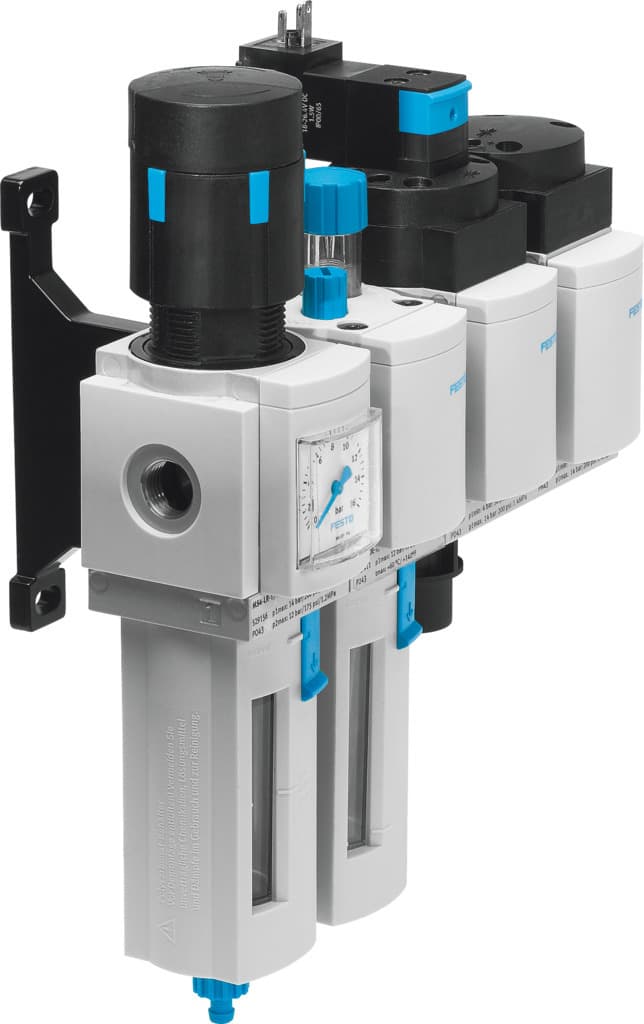

Product Model
msb4n-1/4:j2m1d1a1-wp
Selling Points
- 1The Festo MSB4N-1/4:J2M1D1A1-WP is a comprehensive air preparation unit that filters compressor oil, condensate, and dirt particles from the air, ensuring optimal compressed air quality for various industrial applications.
- 2This unit features a pressure regulator, various filters, a branch module, and pressurization and exhaust valves, making it a versatile solution for managing compressed air.
- 3The MSB4N-1/4:J2M1D1A1-WP is designed with a 1/4 NPT connection and operates at a maximum pressure of 12 bar, making it suitable for a wide range of pneumatic systems.
- 4The product includes an automatic drain feature, which enhances efficiency by eliminating the need for manual draining, ensuring continuous operation without interruptions.
- 5The Festo MSB4N-1/4:J2M1D1A1-WP is RoHS compliant, meeting environmental standards and ensuring a safe and sustainable solution for industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Fully automatic |
Structural design | Branching module Soft start valve Pressure switch Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991759 |
Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 12bar |
Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 600l/min |
Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] |
Temperature of medium | 5°C 60°C | Ambient temperature | 5°C 60°C |
Product weight | 2200g | Type of mounting | With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/4 | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 541438 |
Specifications may be subject to change without notice
