Product Model
msb4n-1/4:j3d1a1-wp
Selling Points
- 1The Festo MSB4N-1/4:J3D1A1-WP is a comprehensive pneumatic air preparation unit that ensures the highest quality of compressed air by filtering out oil, condensate, and dirt particles.
- 2This unit features a pressure regulator and various filters to maintain consistent air pressure and cleanliness, making it ideal for industrial automation applications.
- 3The MSB4N-1/4:J3D1A1-WP is part of Festo's Core Range, offering high-quality products with standardized dimensions and mounting interfaces for easy integration into your system.
- 4With its robust design and reliable performance, this air preparation unit ensures efficient operation in demanding industrial environments, providing a long service life and minimal energy requirements.
- 5The Festo MSB4N-1/4:J3D1A1-WP is designed for easy installation and maintenance, featuring a user-friendly configuration that simplifies your procurement process and enhances productivity in your automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Manually rotating |

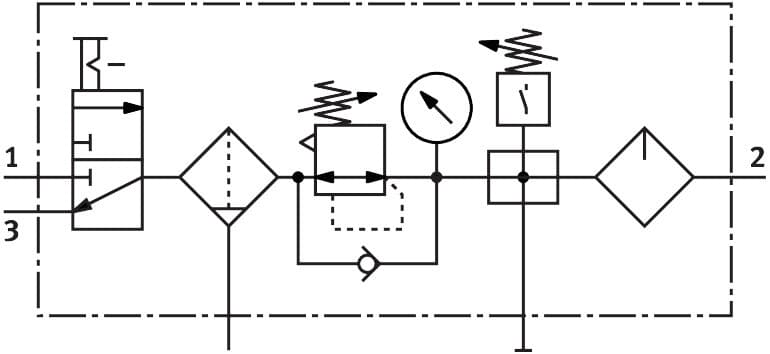

Structural design | Branching module Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991597 |
Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 14bar |
Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 700l/min |
Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 1700g | Type of mounting | With accessories |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/4 | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 541439 |
Specifications may be subject to change without notice
