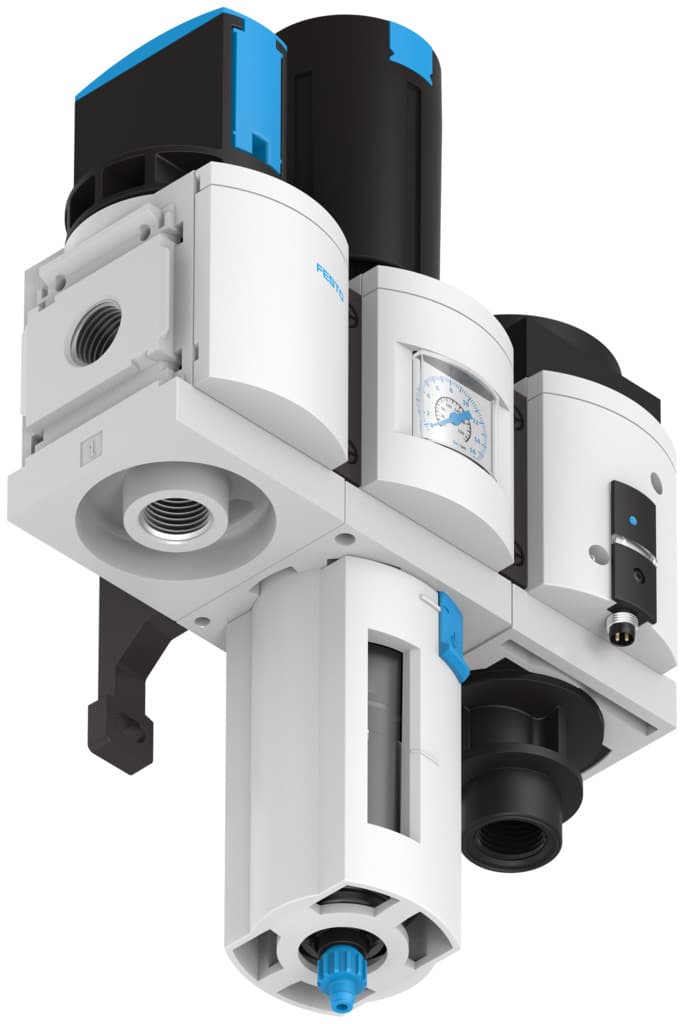

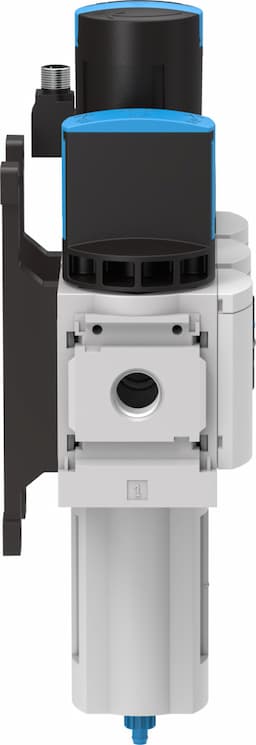

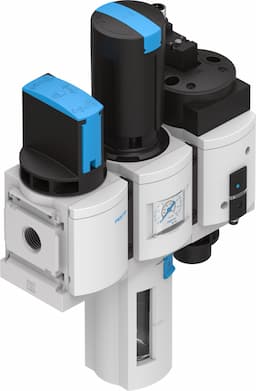

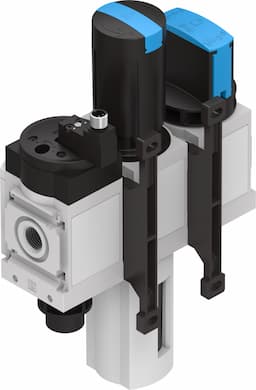

Product Model
msb6-1/2:c3:j1:d14-wp
Selling Points
- 1High-Pressure Filtration: 40 µm filter ensures clean compressed air.
- 2Pressure Regulation: Lockable regulator head with pressure gauge for precise control.
- 3Efficient Drainage: Manual rotary condensate drain for easy maintenance.
- 4Robust Design: Aluminium diecast housing with plastic bowl and guard for durability.
- 5Versatile Flow Rate: Standard nominal flow rate of 4,000 l/min for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00995364 |
Pressure gauge | with pressure gauge | Operating pressure | 4bar 18bar |
Pressure regulation range | 4bar 10bar | Standard nominal flow rate | 4000l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Product weight | 2000g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 8025359 |
Specifications may be subject to change without notice
