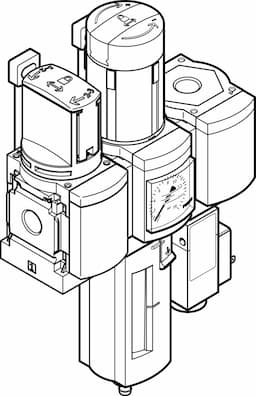

Product Model
msb6-1/2:c3j1f3-wp
Selling Points
- 1The MSB6-1/2:C3J1F3-WP features a high-grade filtration system, ensuring clean and reliable compressed air quality. With filtration options of 5 μm and 40 μm, it meets ISO 85731:2010 standards.
- 2This air preparation unit offers a wide pressure regulation range of 0.5 to 7 bar, allowing for precise control over output pressure. It also includes primary pressure compensation and secondary venting functions.
- 3The MSB6-1/2:C3J1F3-WP is designed for easy installation via accessories, with a vertical ±5° mounting position. It is compatible with various pneumatic connections, including G 1/4 and G 1/2.
- 4The unit comes with both manual and fully automatic condensate drain options, ensuring efficient removal of condensate and maintaining optimal air quality. The manual rotary condensate drain is lockable with accessories for added security.
- 5The MSB6-1/2:C3J1F3-WP includes a pressure gauge for displaying output pressure, providing real-time monitoring of the air preparation process. It also supports pressure sensors for additional operational status indicators.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Branching module Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991757 |
Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 18bar |
Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 4500l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 2000g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 542270 |
Specifications may be subject to change without notice
