Product Model
msb6-1/2:c3j1m1-wp
Selling Points
- 1The Festo MSB6-1/2:C3J1M1-WP is a high-quality pneumatic service unit designed for efficient air preparation, ensuring filtered and lubricated compressed air for various industrial applications.
- 2This service unit features a filter regulator with a pressure gauge, a branching module with a pressure switch, and a lubricator, providing comprehensive air quality management.
- 3The MSB6-1/2:C3J1M1-WP supports a flow rate of up to 5500 l/min and operates within a temperature range of -10°C to +60°C, making it suitable for diverse industrial environments.
- 4With its manual or fully automatic condensate drain options, this service unit ensures optimal performance and minimal downtime, enhancing machine availability.
- 5The product conforms to ISO 1179-1 and ISO 228-1 standards, ensuring reliability and compatibility with various industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |

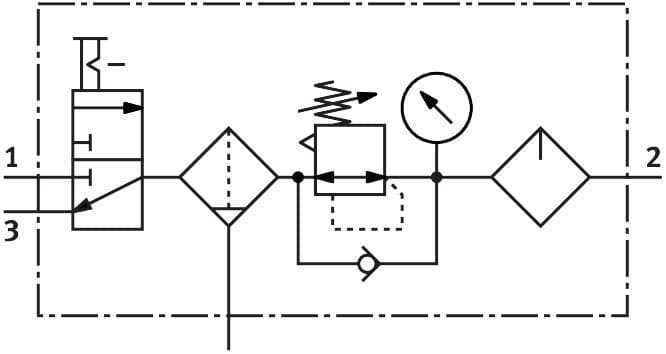

Structural design | Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991595 |
Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 18bar |
Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 3100l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1750g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 542272 |
Specifications may be subject to change without notice
