Festo MSB6-1/2:C3J2D1A1F3-WP: High-Quality Automation Components

Selling Points

1The Festo MSB6-1/2:C3J2D1A1F3-WP is a high-quality automation component designed for precision and efficiency in various industrial applications. It offers reliable performance and durability, ensuring minimal downtime and maximum productivity.
2This component is part of Festo's extensive range of pneumatic and electrical automation solutions, making it easy to integrate into existing systems. Its standardized dimensions and mounting interfaces simplify installation and maintenance.
3The MSB6-1/2:C3J2D1A1F3-WP is engineered with advanced technology, including standardized IO-Link technology, which facilitates simple and economical communication with sensors and actuators. This enhances system efficiency and reduces material requirements.
4Festo's commitment to quality is evident in the MSB6-1/2:C3J2D1A1F3-WP, which undergoes rigorous testing and meets industry standards for reliability and performance. This ensures that the component operates consistently and effectively in demanding environments.
5The MSB6-1/2:C3J2D1A1F3-WP is part of Festo's core range, which offers fast shipping and attractive pricing without compromising on quality. This makes it an ideal choice for customers looking for cost-effective solutions that meet their automation needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	6	Series	MS
Actuator lock	Rotary knob with detent can be closed with accessories	Mounting position	Vertical +/- 5°
Grade of filtration	40μm	Condensate drain	Fully automatic

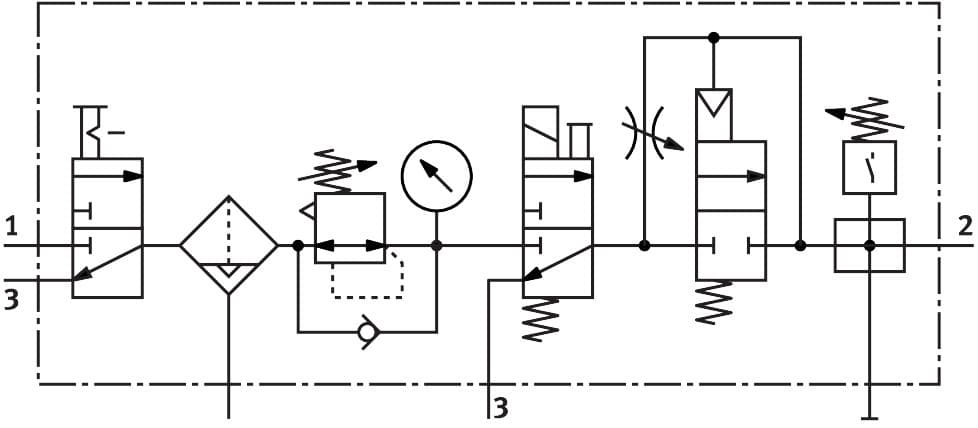

Structural design	Branching module Soft start valve Pressure switch Shut off valve Filter regulator with pressure gauge	Controller function	Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function
Bowl guard	Plastic bowl guard	Symbol	00991760
Pressure gauge	with pressure gauge	Operating pressure	4.5bar 12bar
Pressure regulation range	4bar 12bar	Standard nominal flow rate	3100l/min
Coil characteristics	24 V DC: 1.5 W	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-10°C 60°C
For use in the food industry	See supplementary material information	Air quality class at the output	Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium	5°C 60°C	Ambient temperature	5°C 60°C
Product weight	3500g	Type of mounting	With accessories
Pneumatic connection 1	G1/2	Pneumatic connection 2	G1/2
Pneumatic connection 3	G1/2	Note on materials	RoHS-compliant
Housing material	Die-cast aluminum	Material of bowl	PC
Manufacturer ID	542275

Specifications may be subject to change without notice
