Product Model

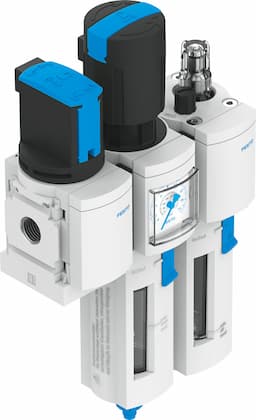

msb6-1/2:c3j2m1-wp
Selling Points
- 1The MSB6-1/2:C3J2M1-WP features a 40 μm filtration grade, ensuring clean and filtered compressed air for your industrial applications.
- 2This unit comes with a fully automatic condensate drain, minimizing downtime and maintaining optimal air quality.
- 3The MSB6-1/2:C3J2M1-WP offers a pressure regulation range of 1 to 12 bar, providing flexibility in various industrial settings.
- 4With a standard nominal flow rate of 3,100 l/min, this unit can handle high air demands efficiently, making it suitable for demanding applications.
- 5Built with an aluminum die-cast housing and a plastic bowl guard, the MSB6-1/2:C3J2M1-WP is designed for durability and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Fully automatic |
Structural design | Shut off valve Filter regulator with pressure gauge Standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991596 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 1bar 12bar | Standard nominal flow rate | 3100l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 1750g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 542278 |
Specifications may be subject to change without notice
