Product Model
msb6-1/2:c3j4-wp
Selling Points

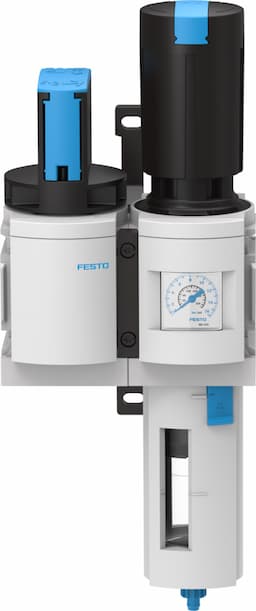

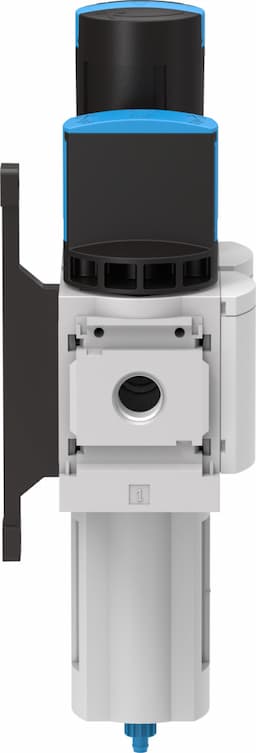

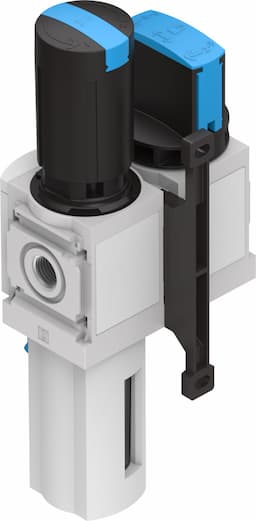

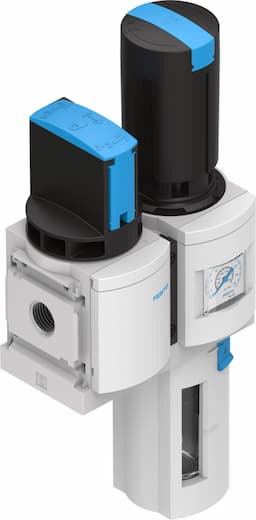

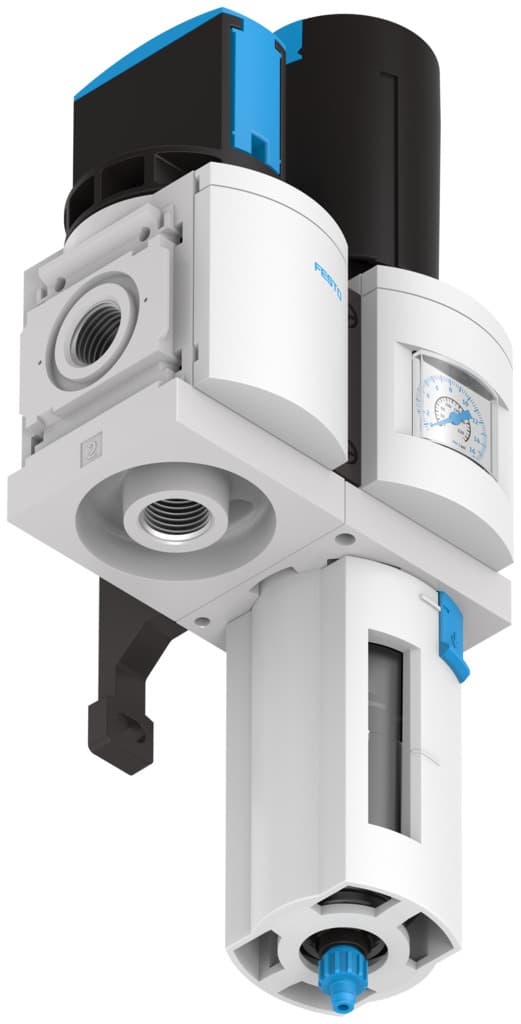

- 1The Festo MSB6-1/2:C3J4-WP is a high-performance air preparation unit designed to ensure the correct compressed air quality, filtering out condensate, oil, and dirt particles.
- 2This unit features a pressure regulation range of 0.5 to 12 bar, making it versatile for various industrial applications.
- 3The MSB6-1/2:C3J4-WP includes a filter regulator with a pressure gauge, providing real-time pressure indication and ensuring precise control over the air supply.
- 4With a manual or fully automatic condensate drain option, this unit offers flexibility in handling condensate, ensuring minimal downtime and maximum efficiency.
- 5The MSB6-1/2:C3J4-WP is part of Festo's comprehensive range of pneumatic components, offering reliable and cost-effective solutions for industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic |
Structural design | Shut off valve Filter regulator with pressure gauge | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991756 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 4800l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | 5°C 60°C |
Ambient temperature | 5°C 60°C | Product weight | 1100g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Material of bowl | PC | Manufacturer ID | 542286 |
Specifications may be subject to change without notice
