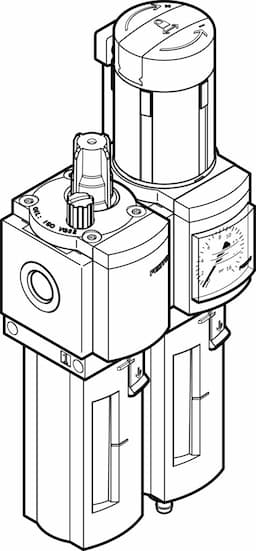

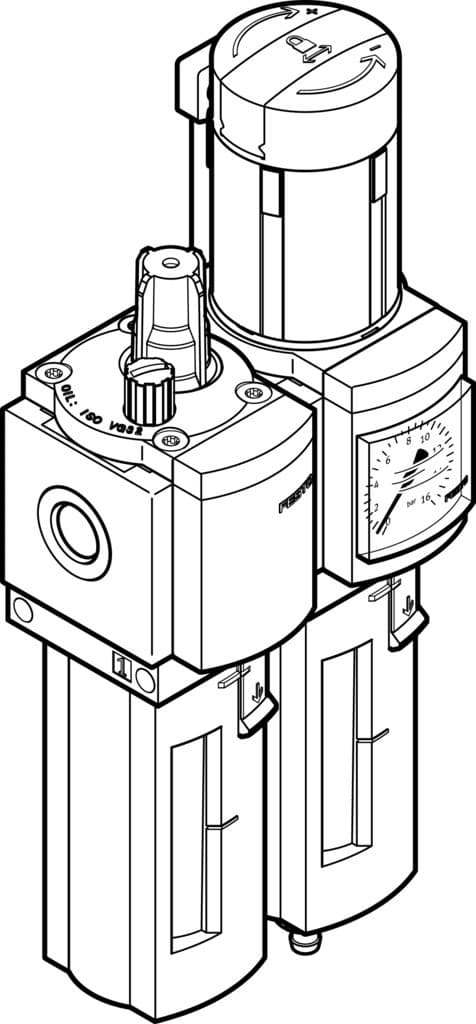

Product Model
msb6-1/2-frc5:j1m1-z
Selling Points
- 1The MSB6-1/2-FRC5:J1M1-Z ensures the correct compressed air quality by filtering out compressor oil, condensate, and dirt particles, making it ideal for various industrial applications.
- 2This air preparation combination unit can be customized to meet specific application needs, featuring a pressure regulator, various filters, a branch module, and pressurization and exhaust valves.
- 3Festo's commitment to quality ensures that the MSB6-1/2-FRC5:J1M1-Z is built to last, providing reliable performance even in demanding environments.
- 4The unit's standardized dimensions and mounting interfaces simplify installation and maintenance, reducing downtime and increasing overall efficiency.
- 5As an Official Partner of Festo, you can access specific product training and after-sales service, ensuring that you are always one step ahead in providing the best solutions to your customers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
Condensate drain | Manually rotating | Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator |
Grade of filtration | 40μm | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991761 |
Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 20bar |
Pressure regulation range | 0.5bar 12bar | Standard nominal flow rate | 3700l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1495g |
Type of mounting | With accessories | Pneumatic connection 1 | G1/2 |
Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
Manufacturer ID | 530245 |
Specifications may be subject to change without notice
