Product Model

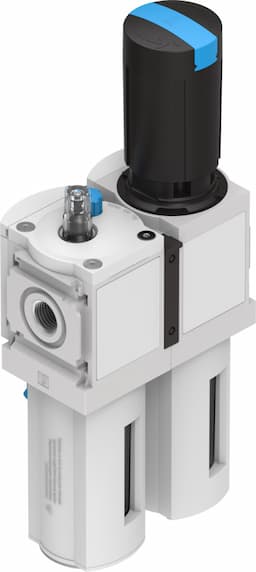

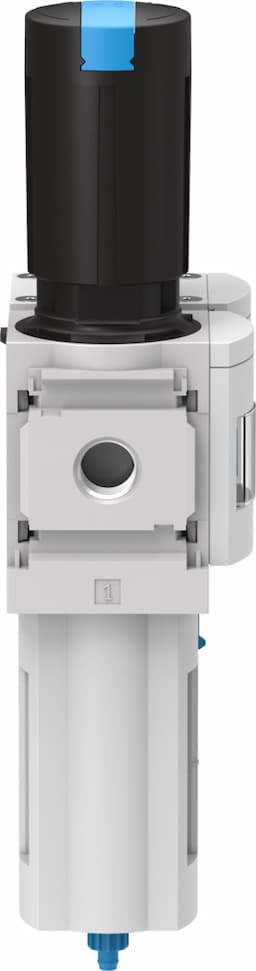

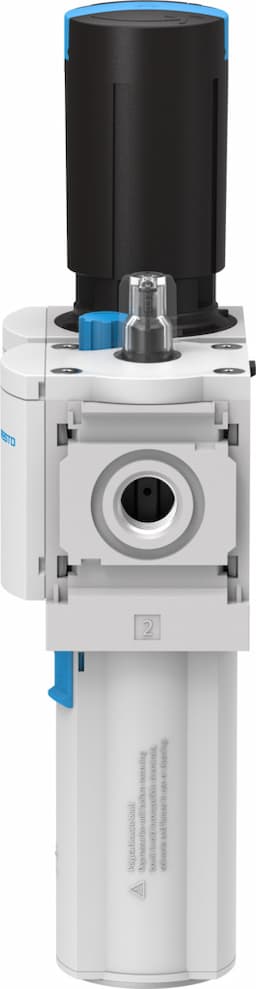

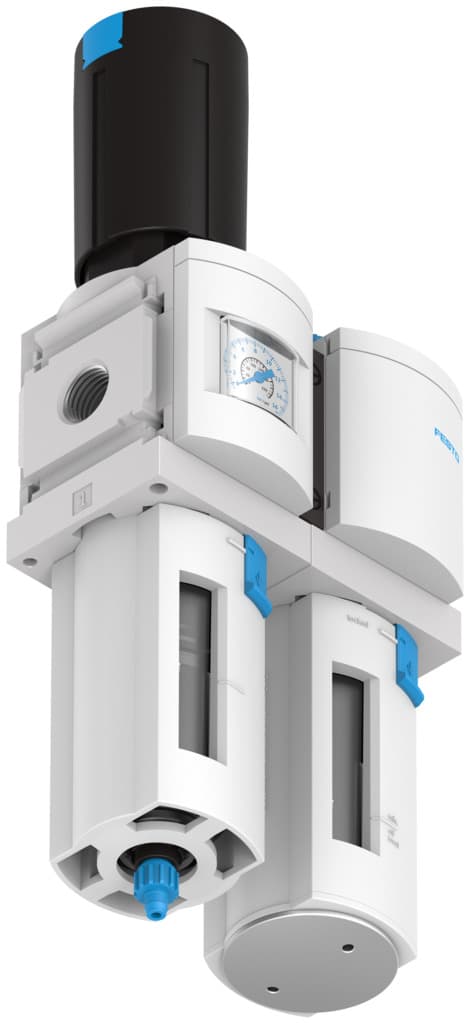

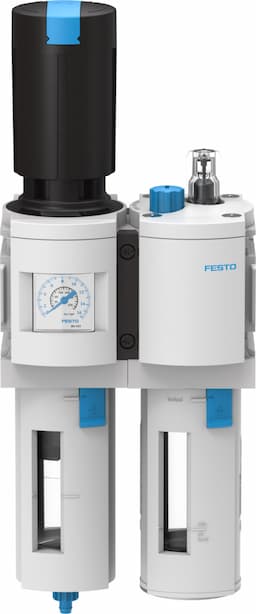

msb6n-1/2-frc1:j5m1
Selling Points
- 1The Festo MSB6N-1/2-FRC1:J5M1 air preparation unit ensures high-quality compressed air by filtering out oil, condensate, and dirt particles, making it ideal for various industrial applications.
- 2This unit features a 7-bar pressure regulation range and includes two 1/2" NPT threaded female ports for easy pneumatic connections, supporting up to 4800 L/min (nominal).
- 3The MSB6N-1/2-FRC1:J5M1 is part of Festo's comprehensive air preparation solution, which includes filters, regulators, lubricators, air dryers, and shut-off and soft-start dump valves.
- 4With its robust design and reliable performance, the Festo MSB6N-1/2-FRC1:J5M1 is a cost-effective solution that meets the demands of modern industrial automation, ensuring efficient production processes.
- 5This air preparation unit is part of Festo's extensive product range, which includes pneumatic valves, cylinders, and control components, making it a one-stop-shop for all your automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 6 | Series | MS |
Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Manually rotating |
Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
Bowl guard | Plastic bowl guard | Symbol | 00991761 |
Pressure gauge | with pressure gauge | Operating pressure | 1.5bar 20bar |
Pressure regulation range | 0.3bar 7bar | Standard nominal flow rate | 4800l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:-] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 1495g |
Type of mounting | With accessories | Pneumatic connection 1 | 1/2 NPT |
Pneumatic connection 2 | 1/2 NPT | Note on materials | RoHS-compliant |
Manufacturer ID | 533979 |
Specifications may be subject to change without notice
