Product Model

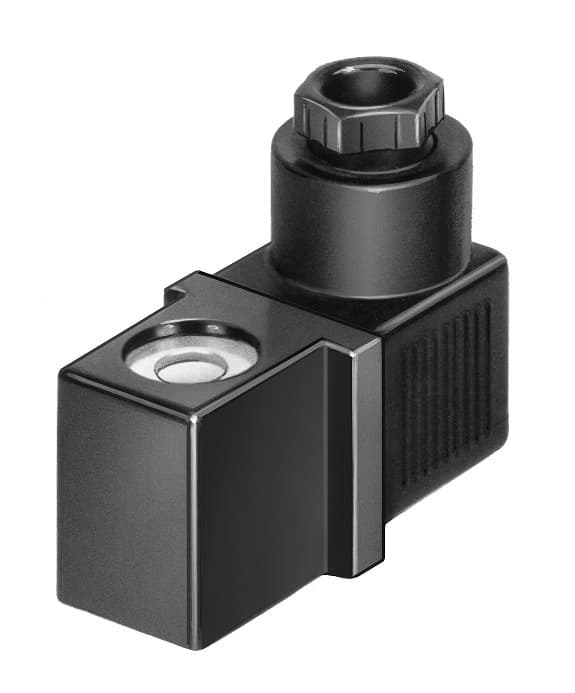

msfg-24/42-50/60-ds
Selling Points
- 1High-Voltage Compatibility: The Festo Solenoid Coil MSFG-24/42-50/60 DS supports both 24V DC and 42V AC, making it versatile for a wide range of industrial applications.
- 2Fast Response Time: With a minimum pick-up time of 10 ms, this solenoid coil ensures quick and efficient operation in your automation system.
- 3Durable Construction: Built with durable materials like Duroplast, copper, and steel, this solenoid coil is designed to withstand the demands of industrial environments.
- 4Universal Mounting: The coil can be mounted in any position, providing flexibility in system design and installation.
- 5Efficient Power Usage: The power factor of 0.7 ensures efficient energy usage, reducing operational costs and environmental impact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Switching position indication | no |
Min. pick-up time | 10ms | Duty cycle | 100% |
Power factor cos {phi} | 0.7 | Coil characteristics | 24 V DC: 4.5 W 42 V AC: 50/60 Hz, initial power 9.0 VA, holding power 7.0 VA |
Permissible frequency fluctuations | +/- 5% | Permissible voltage fluctuations | +/- 10 % |
Maritime classification | See certificate | Certificate issuing authority | DNV-TAA000032X |
LABS (PWIS) conformity | VDMA24364-C1-L | Degree of protection | IP65 |
Ambient temperature | -5°C 40°C | Max. tightening torque of socket | 0.4Nm |
Product weight | 55g | Electrical connection | Form A as per DIN EN 175301-803 |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Solenoid coil material | Duroplast Copper Steel | Material of winding | Copper |
Manufacturer ID | 13264 |
Specifications may be subject to change without notice
