Product Model
msfg-42-od
Selling Points

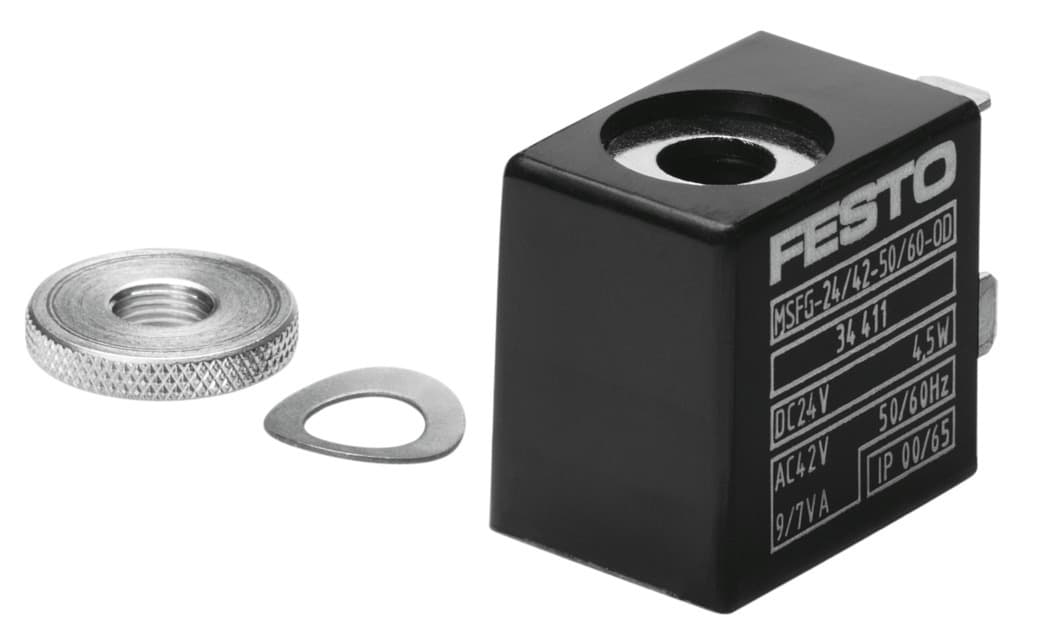

- 1The Festo MSFG-42-OD solenoid coil offers a min. pick-up time of 10 ms, ensuring quick and efficient switching in pneumatic systems.
- 2This solenoid coil can be mounted in any position, providing flexibility in system design and installation.
- 3With a duty cycle of 100%, the MSFG-42-OD can handle continuous operation without degradation, making it ideal for demanding applications.
- 4The coil operates at a power factor (cos phi) of 0.7, indicating efficient energy usage and reduced heat generation.
- 5Available in various voltage and wattage configurations, including 24 V DC at 4.5 W, the MSFG-42-OD is versatile and adaptable to different system requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Switching position indication | no |
Min. pick-up time | 10ms | Duty cycle | 100% |
Coil characteristics | 42 V DC: 5.5 W | Permissible voltage fluctuations | +/- 10 % |
LABS (PWIS) conformity | VDMA24364-C1-L | Degree of protection | IP65 |
Ambient temperature | -5°C 40°C | Max. tightening torque of socket | 0.4Nm |
Product weight | 55g | Electrical connection | 3-pin Plug flags with connection diagram as per Festo standard for MSSD-F |
Type of mounting | With knurled nut | Note on materials | RoHS-compliant |
Solenoid coil material | Duroplast Copper Steel | Material of winding | Copper |
Manufacturer ID | 34413 |
Specifications may be subject to change without notice
