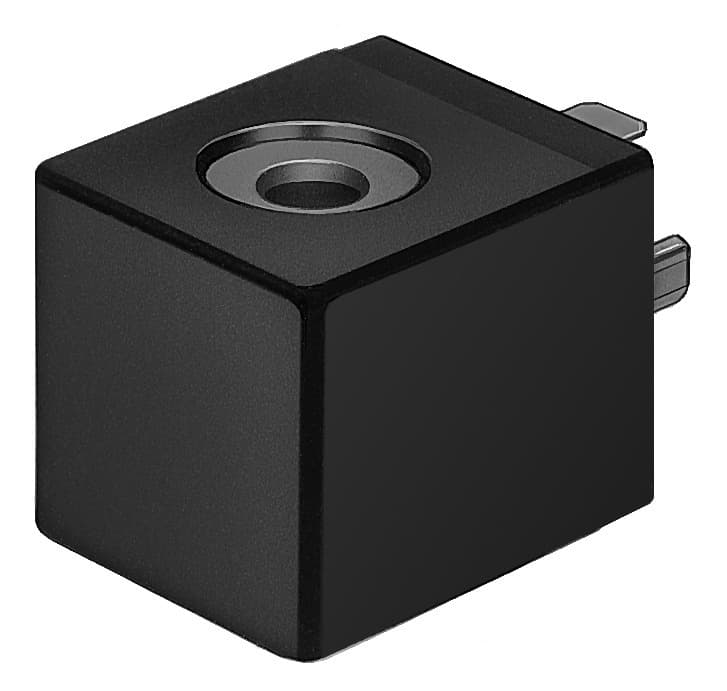

Product Model
msn1w-24ac/12dc
Selling Points
- 1The Festo MSN1W-24AC/12DC solenoid coil offers high performance and versatility, suitable for various applications with its 100% duty cycle and 10ms min. pick-up time.
- 2This solenoid coil is designed for efficient power consumption, with a power factor of 0.7 and characteristic coil data of 12 V DC: 5 W, 24 V AC: 50 Hz (7.5 VA pick-up power, 5 VA holding power), and 24 V AC: 60 Hz (5 VA pick-up power, 3.7 VA holding power).
- 3The MSN1W-24AC/12DC features a robust design with IP65 degree of protection, ensuring it can operate in a wide range of environments. It also meets VDMA24364-C1-L LABS (PWIS) conformity.
- 4This solenoid coil offers flexible mounting options, allowing it to be mounted in any position and rotated 360° on the armature tube. It is clamped via a retaining clamp for secure installation.
- 5The Festo MSN1W-24AC/12DC solenoid coil is compliant with various safety standards, including EN 60529 IP65 and VDE regulation 0580, ensuring it meets the highest safety requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Min. pick-up time | 10ms |
Duty cycle | 100% | Power factor cos {phi} | 0.7 |
Coil characteristics | 12 V DC: 5.0 W 24 V AC: 50 Hz, initial power 7.5 VA, holding power 5.0 VA 24 V AC: 60 Hz, initial power 5.0 VA, holding power 3.7 VA | Permissible voltage fluctuations | at 50Hz ±10% at 60Hz -10...+20% |
LABS (PWIS) conformity | VDMA24364-C1-L | Temperature of medium | -10°C 50°C |
Degree of protection | IP65 | Ambient temperature | -10°C 50°C |
Product weight | 80g | Electrical connection | 3-pin Form A Clip-on as per DIN EN 175301-803 |
Type of mounting | Clamped With retaining clamp | Housing material | PA |
Material of pin contacts | Steel | Material of winding | Copper |
Manufacturer ID | 170152 |
Specifications may be subject to change without notice
