Product Model

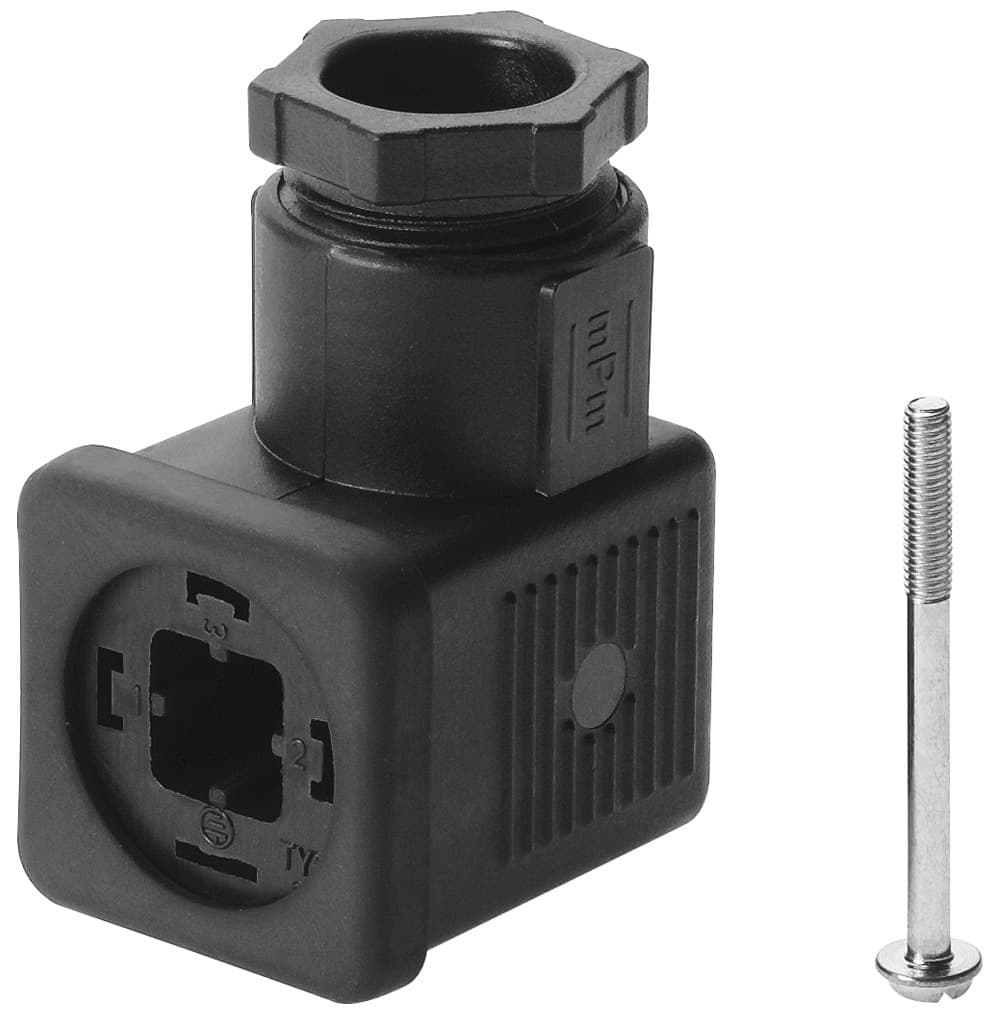

mssd-c-4p
Selling Points
- 1The MSSD-C-4P plug socket offers a reliable 3-pin angled socket connection, ensuring secure and efficient electrical connections in industrial settings.
- 2With an IP65 protection rating, this plug socket is designed to withstand harsh environments and maintain its performance in various industrial conditions.
- 3The MSSD-C-4P can be mounted on solenoid valves via an M3 central screw, providing flexibility in installation and ensuring easy integration into existing systems.
- 4This plug socket operates effectively within the range of -25°C to 90°C, making it suitable for a variety of industrial applications and environments.
- 5The MSSD-C-4P is designed to meet DIN EN 175301-803 and is RoHS-compliant, ensuring it meets the highest standards of quality and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | On air solenoid valve with M3 central screw | Mounting position | Any |
Product weight | 22g | Electrical connection | 3-pin Socket, angled Form A as per DIN EN 175301-803 Rectangular design MSC Rectangular design MSN1 |
Cable fitting | Pg9 | Cable diameter | 6mm 8mm |
Nominal conductor cross section | 1.5mm2 | Degree of protection | IP65 |
Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Housing material | Polymer |
Housing colour | Black | Manufacturer ID | 171157 |
Specifications may be subject to change without notice
