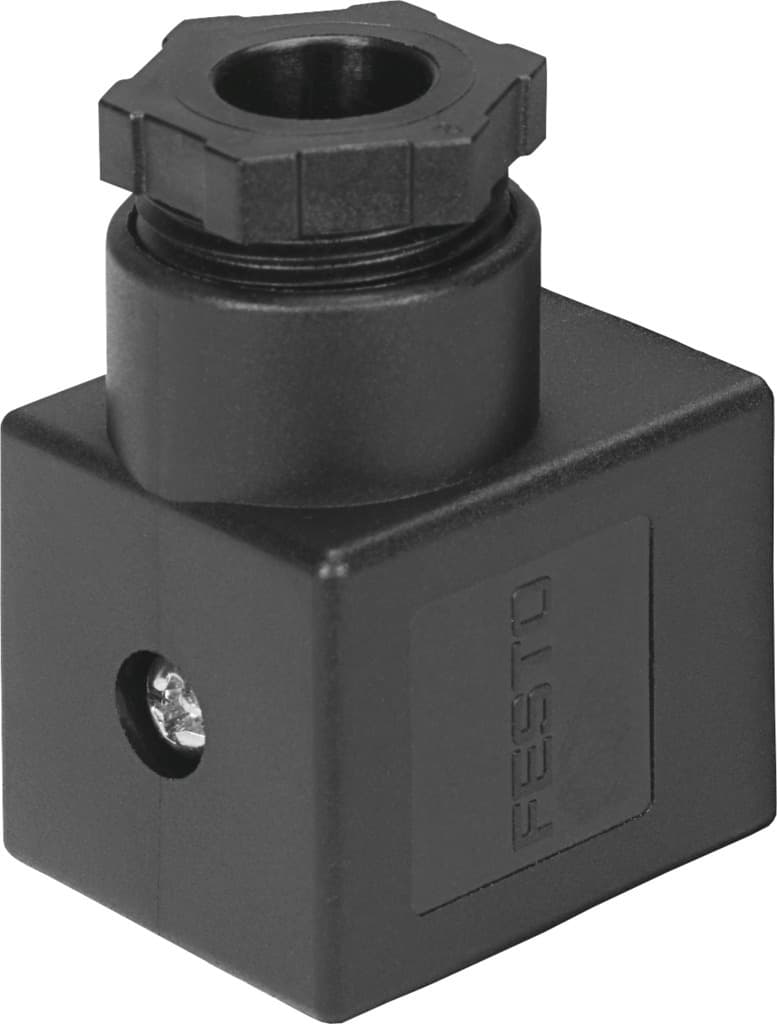

Product Model
mssd-c-m16
Selling Points
- 1The MSSD-C-M16 features a contact durability of 50, ensuring reliable connections over time.
- 2This plug socket can be mounted on any air solenoid valve using an M3 central screw, offering flexibility in installation.
- 3Made from PA-reinforced material with HNBR seals, the MSSD-C-M16 provides robust protection against environmental factors.
- 4It operates within an ambient temperature range of -20°C to 115°C, making it suitable for various industrial applications.
- 5The MSSD-C-M16 is designed with IP65 protection, ensuring it is dust-resistant and can withstand harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact durability | 50 | Type of mounting | On air solenoid valve with M3 central screw |
Mounting position | Any | Product weight | 38g |
Electrical connection | 3-pin Socket, angled Form A as per DIN EN 175301-803 Rectangular design | Cable fitting | M16 |
Approved cable diameter | 6mm 8mm | Connection cross section | 1.5mm2 |
Degree of protection | IP65 as per IEC 60529 | Ambient temperature | -20°C 115°C |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Housing material | PA-reinforced | Seals material | HNBR |
Manufacturer ID | 539709 |
Specifications may be subject to change without notice
