Product Model
mssd-c-s-m16
Selling Points

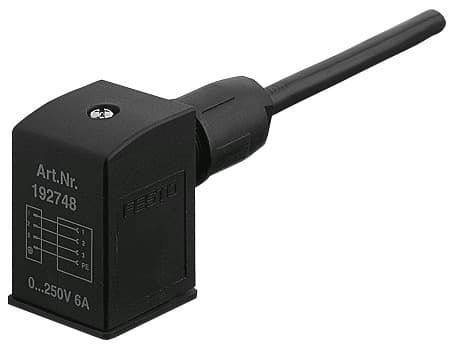

- 1The Festo MSSD-C-S-M16 plug socket offers a 10-frequency connection, ensuring reliable and efficient electrical connections in various industrial settings.
- 2This plug socket is designed for mounting on solenoid valves via an M3 central screw, providing a secure and easy-to-use connection solution.
- 3With an IP67 degree of protection, the MSSD-C-S-M16 is highly resistant to dust and water, making it suitable for harsh environments.
- 4The plug socket features a PA material housing with a black color, ensuring durability and visibility in industrial applications.
- 5The MSSD-C-S-M16 supports a wide ambient temperature range from -25°C to 90°C, making it versatile for use in various temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact durability | 10 | Type of mounting | On air solenoid valve with M3 central screw |
Mounting position | Any | Product weight | 38g |
Electrical connection | 4-pin Socket Form A | Cable diameter | 5.5mm 8mm |
Nominal conductor cross section | 0.5mm2 1mm2 | Degree of protection | IP67 as per IEC 60529 |
Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Housing material | PA | Housing colour | Black |
Manufacturer ID | 192748 |
Specifications may be subject to change without notice
