Product Model
mssd-eb
Selling Points

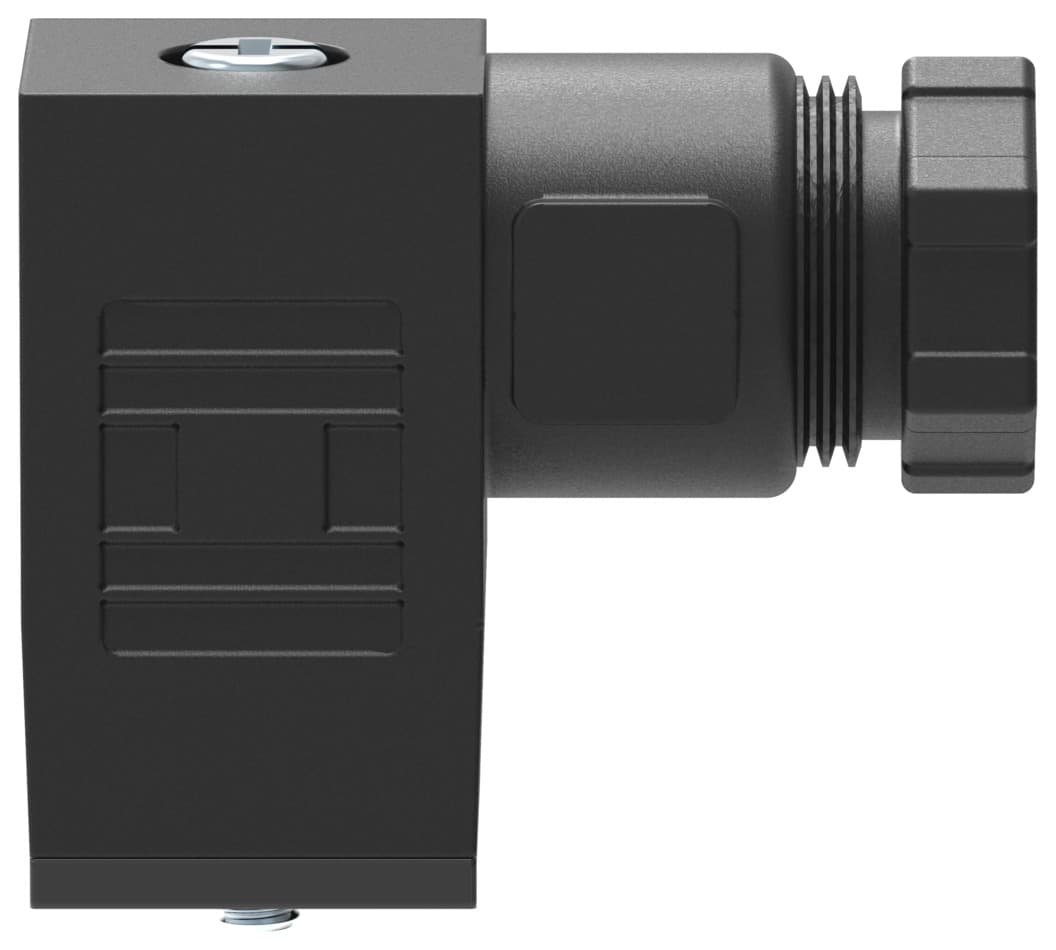

- 1The MSSD-EB is made from durable polymer housing, ensuring long-lasting performance in various environments.
- 2It can be mounted on solenoid valves via M2.5 central screws, offering flexibility in installation.
- 3The angled cable outlet allows for easy routing and reduces clutter, enhancing overall system efficiency.
- 4The plug socket supports operational voltages from 0 to 300 V DC and 0 to 250 V AC, with a current rating of 6 A at 40°C.
- 5The MSSD-EB features an IP65 protection rating, ensuring it is dust-proof and resistant to water jets, making it suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | On air solenoid valve with M2.5 central screw | Cable outlet | Angled |
Note on cable outlet | Can be rotated through 90° | Mounting position | Any |
Product weight | 11g | Electrical connection | 3-pin Socket Socket, angled Form C as per DIN EN 175301-803 as per DIN EN 61984 Rectangular design MSEB Rectangular design MSN2 |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, number of pins/wires | 3 |
Electrical connection for input 1, connection pattern | 00995650 | Electrical connection 2 | Screw terminal |
DC operating voltage range | 0V 300V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 6A | Current rating | 6A |
Surge resistance | 4kV | Protective earth connection | Available |
Cable fitting | Pg7 | Cable diameter | 6mm 8mm |
Approved cable diameter | 7.5mm | Nominal conductor cross section | 0.75mm2 |
Connection cross section | 0.75mm2 | Degree of protection | IP65 as per IEC 60529 |
Note on degree of protection | In mounted state | Ambient temperature | -45°C 90°C |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Contamination level | 3 |
Housing material | Polymer | Housing colour | Black |
Seals material | NBR | Manufacturer ID | 151687 |
Specifications may be subject to change without notice
