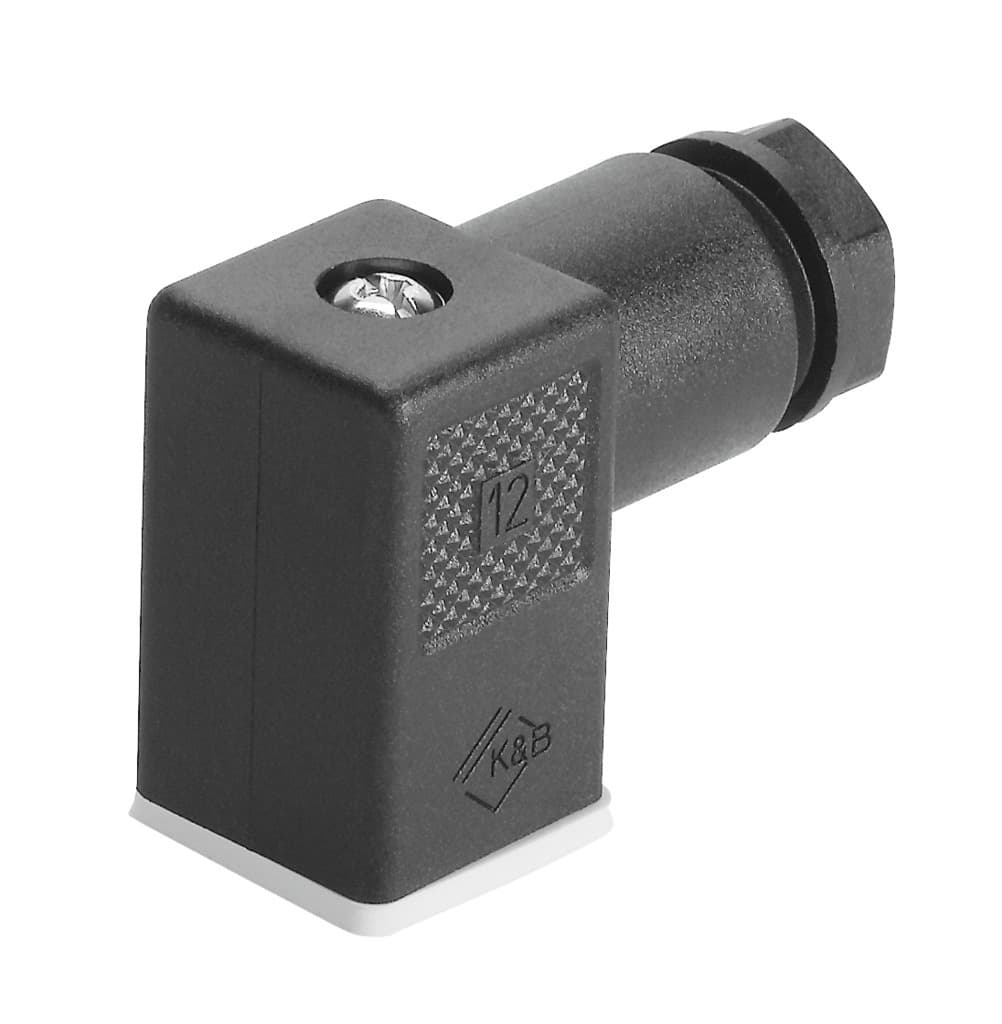

Product Model
mssd-eb-m12
Selling Points
- 1The MSSD-EB-M12 plug socket ensures a secure and reliable electrical connection, perfect for pneumatic systems. It is designed to withstand various operating conditions.
- 2This plug socket can be mounted on a solenoid valve via a central screw M2.5, offering flexibility in installation. The mounting position is optional, allowing for easy integration.
- 3With an IP65 rating, the MSSD-EB-M12 provides excellent protection against dust and water, ensuring durability in harsh environments. It also meets IEC 60529 standards.
- 4The plug socket operates within a broad voltage range of 12 V to 24 V DC and AC, making it suitable for various applications. It can handle a permissible current load of 0.12 A.
- 5Constructed from PA-reinforced housing and HNBR seals, the MSSD-EB-M12 is built to last. The electrical contacts are made from silver-plated copper alloy and gold-plated brass for added durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact durability | 50 | Type of mounting | On air solenoid valve with M2.5 central screw |
Mounting position | Any | Product weight | 11g |
Electrical connection | 3-pin Socket, angled Form C as per DIN EN 175301-803 Rectangular design | Cable fitting | M12 |
Approved cable diameter | 4mm 6mm | Connection cross section | 1.5mm2 |
Degree of protection | IP65 as per IEC 60529 | Ambient temperature | -40°C 125°C |
LABS (PWIS) conformity | VDMA24364-B2-L | Housing material | PA-reinforced |
Seals material | HNBR | Manufacturer ID | 539712 |
Specifications may be subject to change without notice
