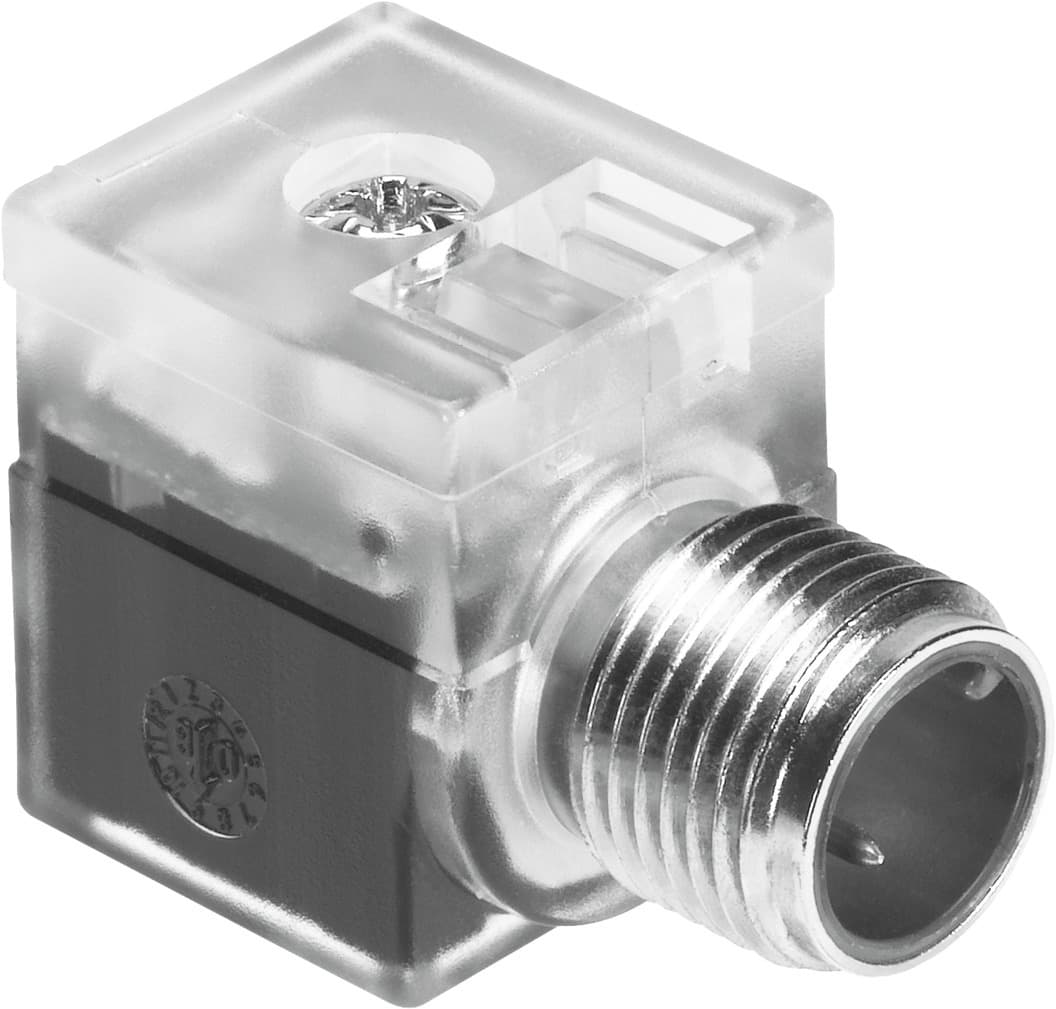

Festo MSSD-EB-M12-MONO Plug Socket: Reliable and Efficient

Selling Points

1The MSSD-EB-M12-MONO plug socket is designed for mounting on solenoid valves via a central M2.5 screw, ensuring a secure and easy installation process.
2This plug socket features an electrical connection type C according to EN 175301-803 and a straight plug connector M12x1, 2-pin, A-coded for reliable electrical connections.
3The MSSD-EB-M12-MONO operates within a voltage range of 12 V to 24 V DC and AC, with a nominal operating voltage of 24 V DC, making it versatile for various applications.
4The plug socket has an immunity to surge of 2.5 kV and a permissible current load of 0.12 A, ensuring safe and efficient operation in harsh environments.
5The MSSD-EB-M12-MONO features an LED switching position indicator and is constructed with high-quality materials, including PA housing and nickel-plated steel screws, for durability and corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Based on norm	EN 175301-803 EN 61076-2-101 EN 61984	Switching position indication	LED
Type of mounting	On air solenoid valve with M2.5 central screw	Product weight	13.18g
Electrical connection 1	Socket, as per EN 175301-803, form C	Electrical connection 2	Straight plug, M12x1, 2-pin, A-coded
DC operating voltage range	12V 24V	Nominal operating voltage DC	24V
Operating voltage range AC	12V 24V	Current rating	0.12A
Surge resistance	2.5kV	Degree of protection	IP65
Ambient temperature	-10°C 50°C	LABS (PWIS) conformity	VDMA24364-B2-L
Contamination level	3	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
Housing material	PA	Housing colour	Transparent
Material of screw-type lock	Steel, nickel-plated	Seals material	HNBR NBR
Material of pin contacts	Copper alloy, silver-plated Brass, gold-plated	Manufacturer ID	188024

Specifications may be subject to change without notice
