Product Model

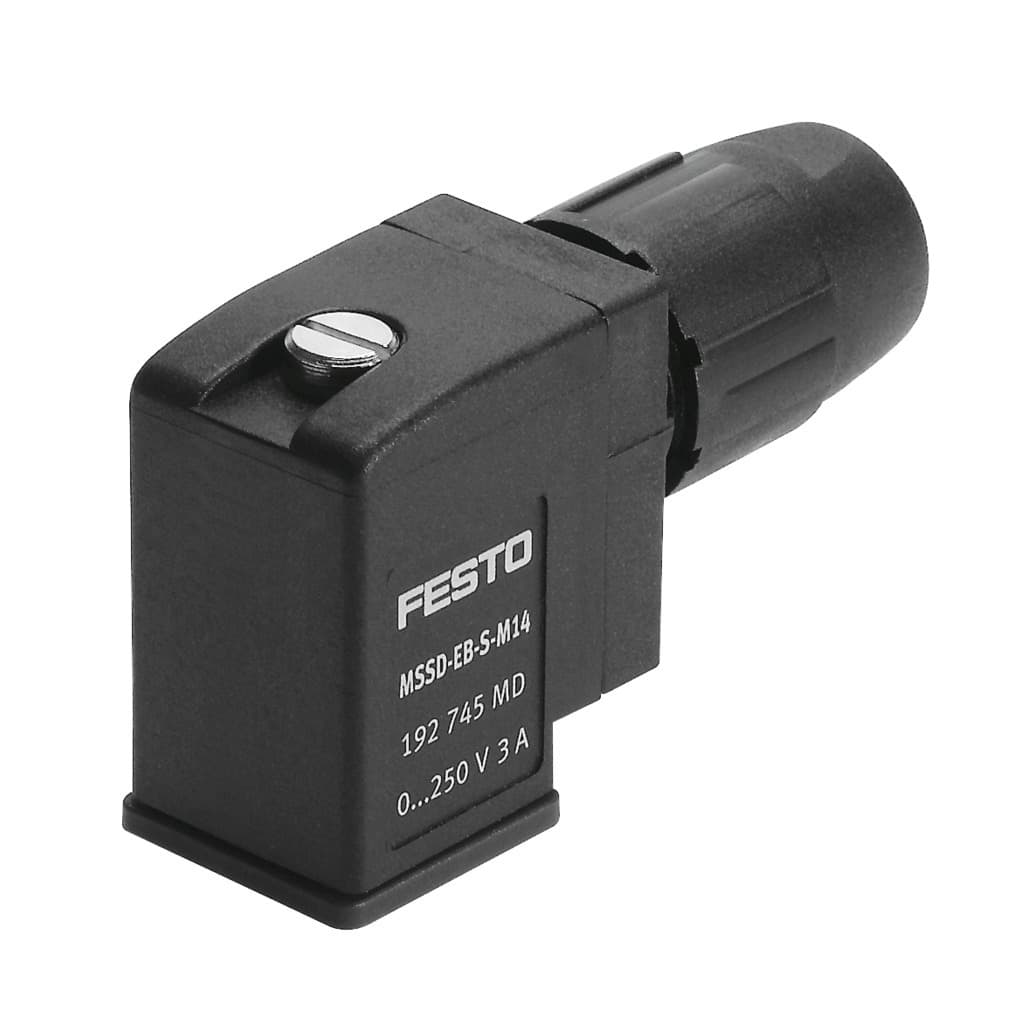

mssd-eb-s-m14
Selling Points
- 1The MSSD-EB-S-M14 is built with high-quality PA-reinforced polymer housing, ensuring durability and resistance to environmental factors.
- 2This plug socket can be mounted on any solenoid valve via an M2.5 central screw, providing flexibility in installation.
- 3With an IP67 rating, the MSSD-EB-S-M14 offers excellent protection against dust and water, making it suitable for harsh environments.
- 4It operates within an ambient temperature range of -25°C to 90°C, ensuring reliable performance in various conditions.
- 5Weighing only 17 grams, the MSSD-EB-S-M14 is a compact and lightweight solution for automation tasks, making it easy to integrate into systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact durability | 10 | Type of mounting | On air solenoid valve with M2.5 central screw |
Mounting position | Any | Product weight | 17g |
Electrical connection | 4-pin Socket Form C | Cable diameter | 4mm 6mm |
Nominal conductor cross section | 0.25mm2 0.5mm2 | Degree of protection | IP67 as per IEC 60529 |
Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Housing material | PA | Housing colour | Black |
Manufacturer ID | 192745 |
Specifications may be subject to change without notice
