Product Model
mssd-n
Selling Points

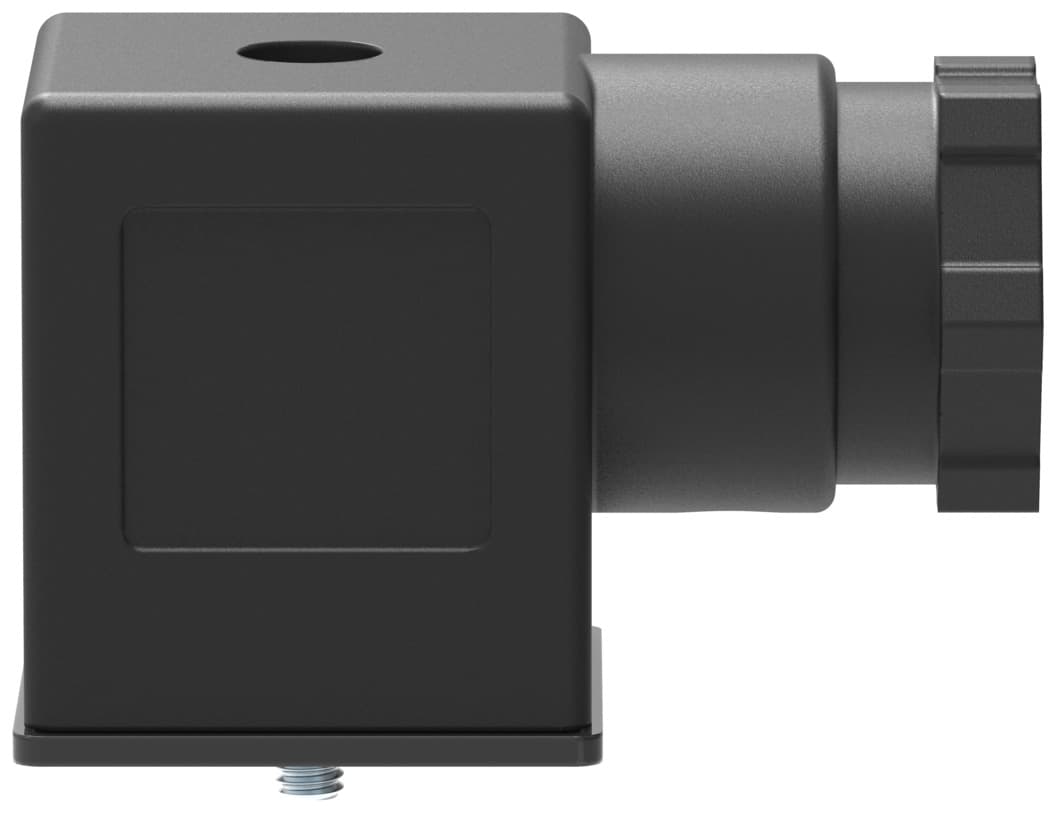

- 1The MSSD-N plug socket is made from PA-reinforced polymer housing and features VMQ seals, ensuring durability and resistance to environmental conditions.
- 2Operates effectively between -25°C and 80°C, making it suitable for a variety of industrial settings.
- 3Equipped with IP65 protection, this plug socket provides reliable performance in harsh environments.
- 4Can be mounted on solenoid valves via M3 central screws, offering flexibility in installation.
- 5Supports up to 16A current at 40°C and has a surge resistance of 2 kV, ensuring reliable electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 175301-803 | Cable outlet | Angled |
Product weight | 30g | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | Connection diagram form A as per EN 175301-803 |
Electrical connection 1, number of pins/wires | 3 | Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw |
Electrical connection for input 1, connection pattern | 00995648 | Electrical connection 2, connection technology | Screw terminal |
DC operating voltage range | 0V 24V | Operating voltage range AC | 0V 250V |
Current rating at 40° C | 16A | Cable fitting | M20x1.5 |
Cable diameter | 8mm 10mm | Nominal conductor cross section | 1.5mm2 |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Housing material | PA-reinforced |
Housing colour | Black | Material of screws | Steel |
Seals material | VMQ | Manufacturer ID | 550067 |
Specifications may be subject to change without notice
