Product Model
mssd-v
Selling Points

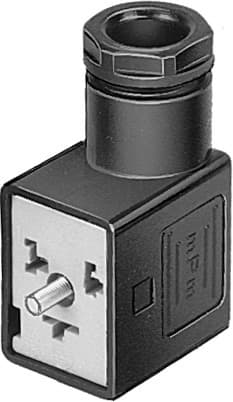

- 1The Festo MSSD-V plug socket offers a secure and reliable electrical connection for pneumatic systems, ensuring consistent performance and durability.
- 2This plug socket features an angled cable outlet that can be rotated 180°, providing flexibility in mounting positions and reducing installation complexity.
- 3With a current rating of up to 16 A at 40°C, the MSSD-V is suitable for a wide range of applications requiring high current flow.
- 4The MSSD-V is designed with a protective conductor connection and meets IP65 protection standards, ensuring safety and reliability in harsh environments.
- 5Manufactured from high-quality polymer materials, the MSSD-V plug socket is RoHS compliant and features black housing with NBR seals for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type of mounting | On air solenoid valve with M3 central screw | Cable outlet | Angled |
Note on cable outlet | Can be rotated through 180° | Mounting position | Any |
Product weight | 18g | Electrical connection | 3-pin Socket Socket, angled Form B as per DIN EN 175301-803 Rectangular design MSV |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, number of pins/wires | 3 |
Electrical connection 2 | Screw terminal | DC operating voltage range | 0V 250V |
Operating voltage range AC | 0V 250V | Current rating at 40° C | 16A |
Protective earth connection | Available | Cable fitting | Pg9 |
Cable diameter | 6mm 8mm | Nominal conductor cross section | 1.5mm2 |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 90°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
Housing material | Polymer | Housing colour | Black |
Seals material | NBR | Manufacturer ID | 33295 |
Specifications may be subject to change without notice
