Product Model
mssd-zbzc
Selling Points

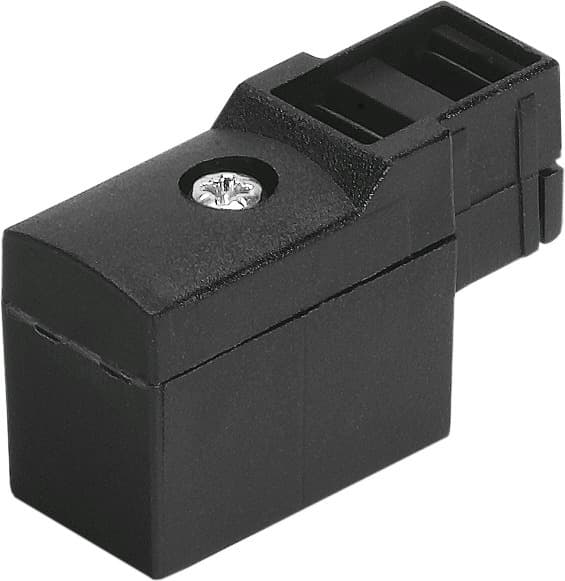

- 1The Festo MSSD-ZBZC plug socket is designed for valves with ZB and ZC solenoid coils, offering a versatile solution for various applications.
- 2This plug socket features a self-tapping central screw mounting, allowing for easy and secure installation on solenoid valves.
- 3With an operational voltage range of 3 V to 36 V DC and a nominal operating voltage of 24 V DC, it is suitable for a wide range of electrical systems.
- 4The MSSD-ZBZC has a degree of protection rated IP50, ensuring reliable operation in various environmental conditions.
- 5Made from PA (Polyamide) material, this plug socket is RoHS-compliant and features low corrosion resistance class CRC 1, making it ideal for maritime applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Maritime classification | See certificate | Type of mounting | On air solenoid valve with self-tapping screw |
Mounting position | Any | Product weight | 11g |
Electrical connection | Socket | DC operating voltage range | 3V 36V |
Nominal operating voltage DC | 24V | Nominal conductor cross section | 0.22mm2 0.34mm2 |
Degree of protection | IP50 | Ambient temperature | -10°C 50°C |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Housing material | PA |
Manufacturer ID | 185521 |
Specifications may be subject to change without notice
