Product Model
msw-42ac-od

Selling Points

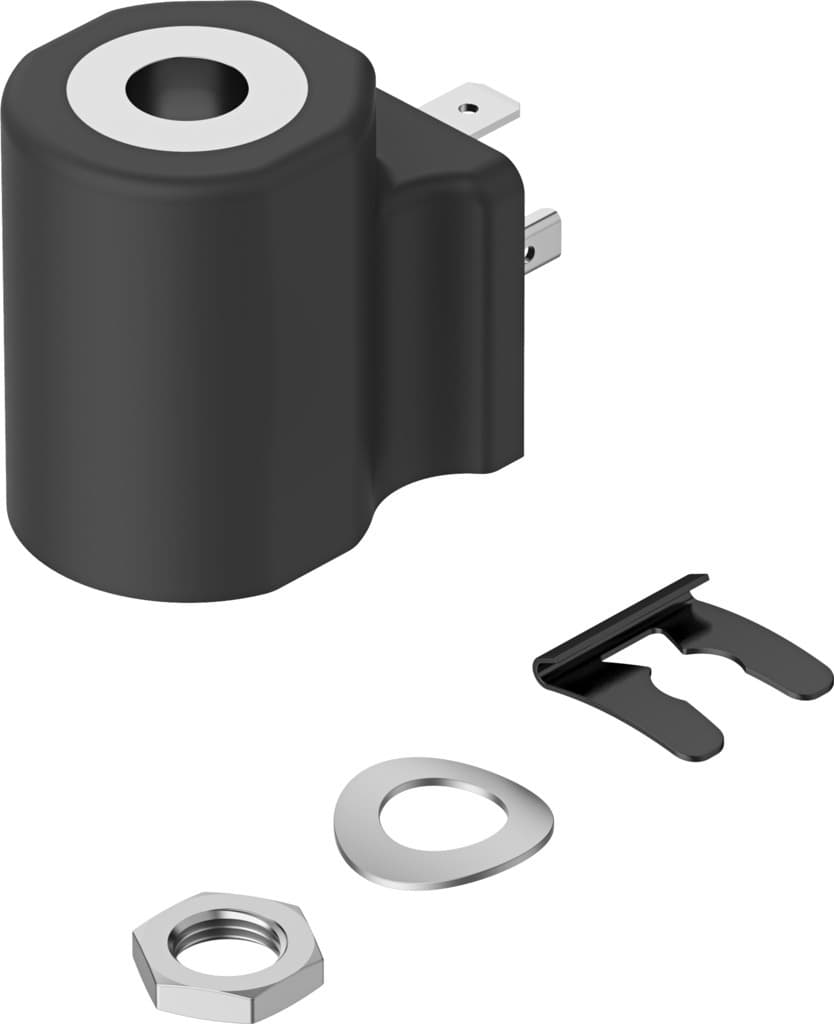

- 1The MSW-42AC-OD solenoid coil is built with a PA housing and steel electrical contact, ensuring durability and reliability in harsh industrial environments.
- 2With a minimum pick-up time of 10 ms and a 100% duty cycle, this solenoid coil provides fast and consistent operation in pneumatic systems.
- 3Featuring an IP65 degree of protection, the MSW-42AC-OD is designed to withstand challenging conditions, making it suitable for a wide range of industrial applications.
- 4The solenoid coil is RoHS compliant, ensuring it meets stringent environmental regulations and safety standards.
- 5The MSW-42AC-OD can be mounted in any position, offering flexibility in system design and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Mounting position | Any | Min. pick-up time | 10ms |
Duty cycle | 100% | LABS (PWIS) conformity | VDMA24364-C1-L |
Degree of protection | IP65 | Note on materials | RoHS-compliant |
Housing material | PA | Material of pin contacts | Steel |
Material of winding | Copper | Manufacturer ID | 34403 |
Specifications may be subject to change without notice
