Product Model

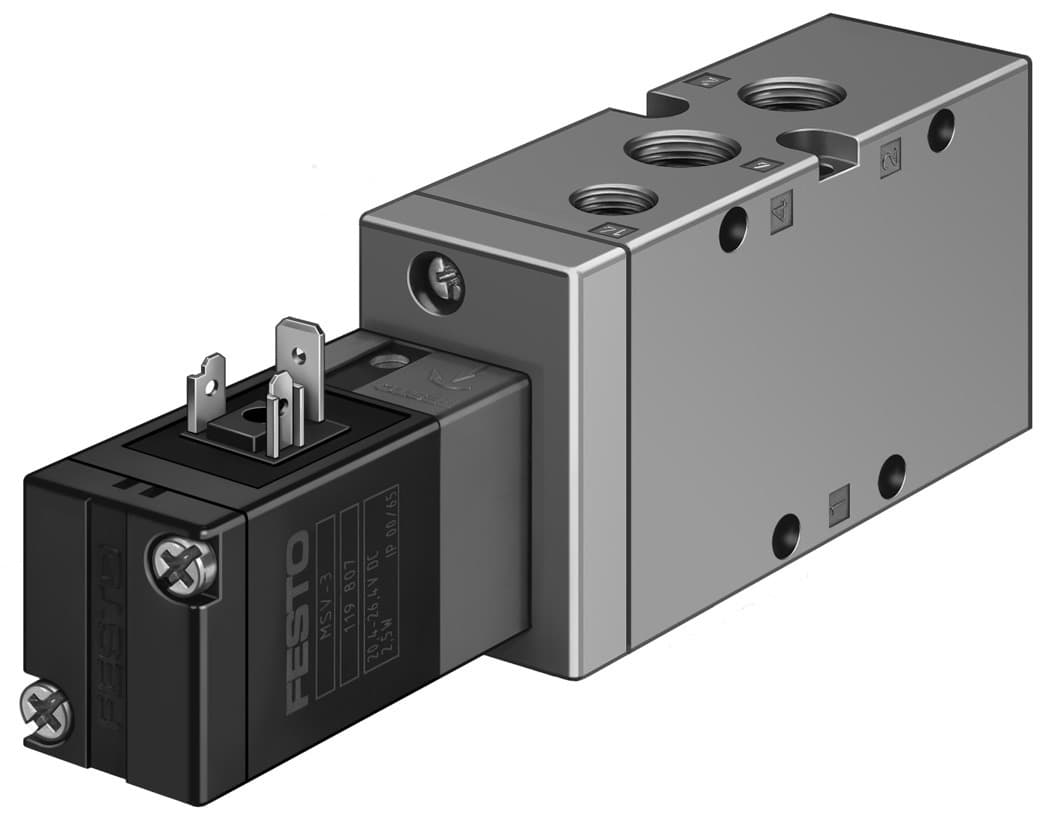

mvh-5-1/4-l-b
Selling Points
- 1High-Performance Automation: The Festo MVH-5-1/4-L-B solenoid valve is engineered for precise control in various industrial automation applications, ensuring reliable and efficient operation.
- 2Die-Cast Aluminum Housing: Constructed with durable die-cast aluminum, this valve offers robustness and resistance to corrosion, making it suitable for demanding environments.
- 3Compressed Air Compatibility: Designed to operate with compressed air as per ISO 8573-1:2010, this valve ensures compatibility with standard industrial air supply systems.
- 4Pneumatic Connections: Equipped with G1/4 pneumatic connections, this valve provides easy integration into existing pneumatic systems, enhancing flexibility and convenience.
- 5Low Corrosion Stress: With a corrosion resistance class (CRC) of 1, this valve minimizes the risk of corrosion, ensuring long-term reliability and performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | G1/4 | Operating pressure | 3bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Nominal width | 10mm | Width dimension | 33mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991023 |
Lap | Overlap | b-value | 0.38 |
C value | 6.35l/sbar | Max. switching frequency | 3Hz |
Switching time off | 37ms | On switching time | 28ms |
Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
Coil characteristics | 24 V DC: 2.5 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -40°C 60°C | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Product weight | 440g |
Type of mounting | Optionally: On PR rail With through-hole | Pilot exhaust air port 84 | M5 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 31009 |
Specifications may be subject to change without notice
