Product Model

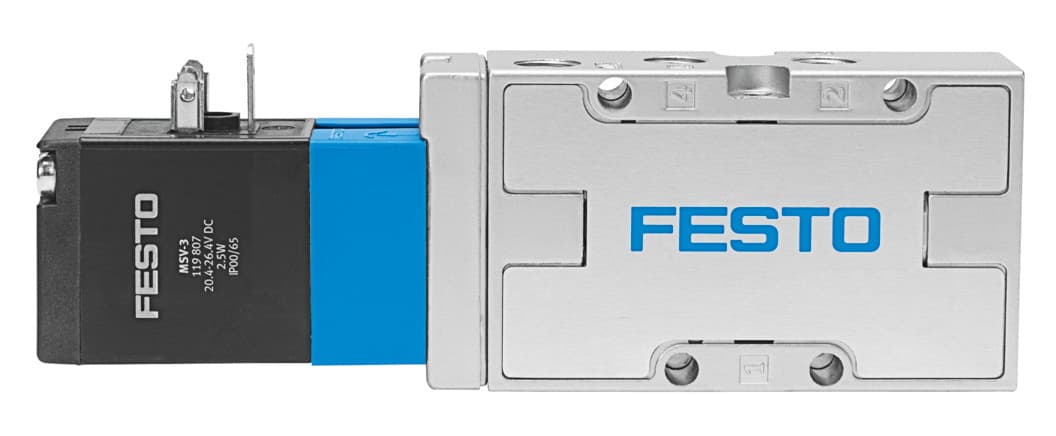

mvh-5-1/8-s-b
Selling Points
- 1The Festo MVH-5-1/8-S-B solenoid valve is a 5/2-way monostable electric valve, ensuring reliable and precise control in industrial automation systems.
- 2With a standard nominal flow rate and a compact construction width of 26 mm, this valve is ideal for applications requiring efficient and space-saving solutions.
- 3The MVH-5-1/8-S-B is designed for operation under pressures up to 10 bar, making it suitable for a wide range of industrial applications.
- 4This solenoid valve features electric actuation, providing easy integration with control systems and ensuring consistent performance.
- 5Festo's commitment to quality and reliability means the MVH-5-1/8-S-B is built to last, with robust construction and minimal maintenance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 750l/min |
Pneumatic working port | G1/8 | Operating voltage | 24V DC |
Operating pressure | 0bar 10bar | Structural design | Plate seat |
Reset method | Mechanical spring | Nominal width | 5mm |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Non-reversible |
Symbol | 00991024 | Lap | Underlap |
Pilot pressure MPa | 0.2MPa 1MPa | Pilot pressure | 2bar 10bar |
b-value | 0.34 | C value | 3l/sbar |
Max. switching frequency | 3Hz | Switching time off | 36ms |
On switching time | 20ms | Max. positive test pulse with 0 signal | 2200μs |
Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 230g |
Type of mounting | Optionally: On PR rail With through-hole | Auxiliary pilot air port 14 | G1/8 |
Pilot exhaust air port 84 | M5 | Pilot air port 14 | G1/8 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | NBR TPE-U(PU) | Housing material | Die-cast aluminum |
Manufacturer ID | 30996 |
Specifications may be subject to change without notice
