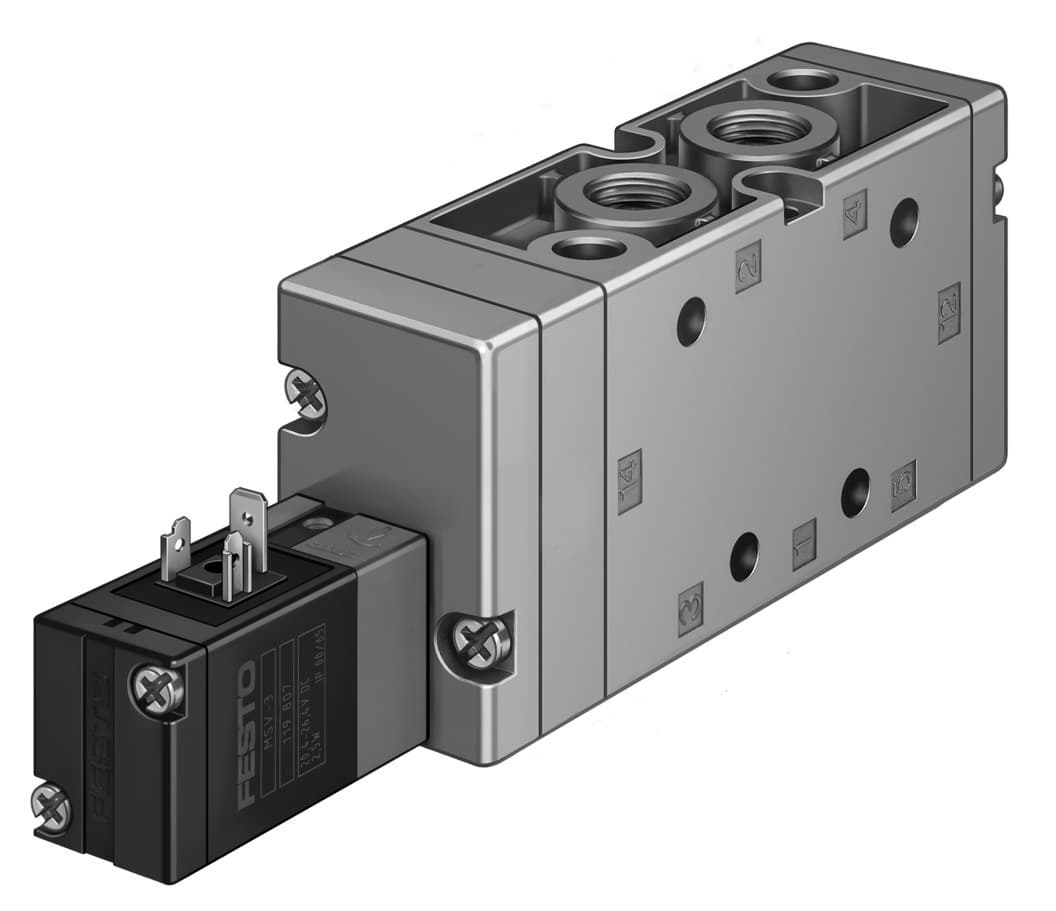

Product Model
mvh-5-3/8-l-s-b
Selling Points
- 1The Festo MVH-5-3/8-L-S-B solenoid valve features a 5/2 monostable function, ensuring reliable and precise control in various industrial applications.
- 2This valve is electrically actuated, providing efficient and easy operation with minimal manual intervention.
- 3Designed with a soft sealing principle, the MVH-5-3/8-L-S-B ensures high performance and durability in demanding environments.
- 4The valve is available in multiple connections, including G1/8 and G3/8, making it versatile for different pneumatic systems.
- 5With a standard flow rate of 2000 l/min and reversible flow direction, the MVH-5-3/8-L-S-B is suitable for a wide range of industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 40mm | Standard nominal flow rate | 2000l/min |
Pneumatic working port | G3/8 | Operating voltage | 24V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
Reset method | Pneumatic spring | Nominal width | 12mm |
Width dimension | 41mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Reversible |
Symbol | 00991026 | Lap | Overlap |
Pilot pressure MPa | 0.2MPa 1MPa | Pilot pressure | 2bar 10bar |
Max. switching frequency | 3Hz | Switching time off | 60ms |
On switching time | 22ms | Max. positive test pulse with 0 signal | 2200μs |
Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 50°C | Product weight | 750g |
Type of mounting | Optionally: On PR rail With through-hole | Auxiliary pilot air port 12 | G1/8 |
Auxiliary pilot air port 14 | G1/8 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | G1/8 | Pilot air port 14 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 33180 |
Specifications may be subject to change without notice
