Product Model

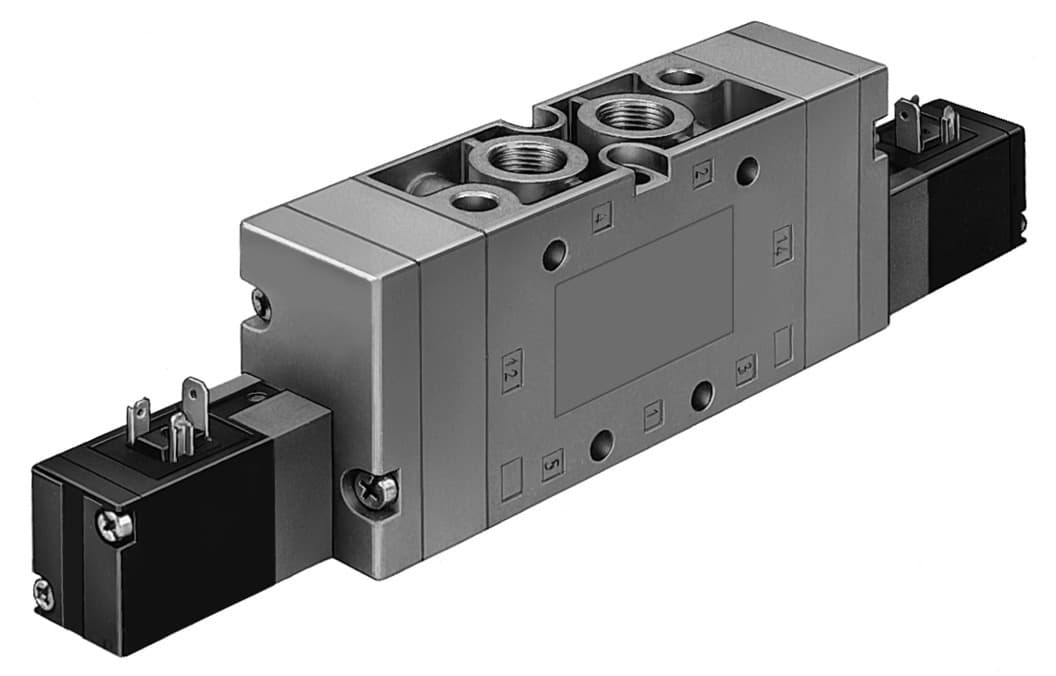

mvh-5/3b-3/8-b
Selling Points
- 1The MVH-5/3B-3/8-B solenoid valve is designed with a mechanical spring return, ensuring reliable operation and a service life of 10 million cycles.
- 2With a standard nominal flow rate of 2000 l/min and operating pressure ranging from 3 to 10 bar, this valve is optimized for efficient fluid control.
- 3The 5/3-way pressurized function makes it suitable for a wide range of applications, including industrial automation and process control.
- 4Equipped with a solenoid coil and manual override, the valve is easy to install and operate, reducing setup time and complexity.
- 5Festo provides detailed technical data and documentation, ensuring that users can easily integrate the valve into their systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Width | 40mm | Standard nominal flow rate | 2600l/min |
Pneumatic working port | G3/8 | Operating voltage | 24V DC |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Nominal width | 12mm |
Width dimension | 41mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991034 | Lap | Overlap |
Max. switching frequency | 3Hz | Switching time off | 92ms |
On switching time | 35ms | Changeover time | 73ms |
Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
Coil characteristics | 24 V DC: 2.5 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -40°C 60°C | Temperature of medium | -5°C 50°C |
Ambient temperature | -5°C 50°C | Product weight | 1000g |
Type of mounting | Optionally: On PR rail With through-hole | Pilot exhaust air port 82 | M5 |
Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 19699 |
