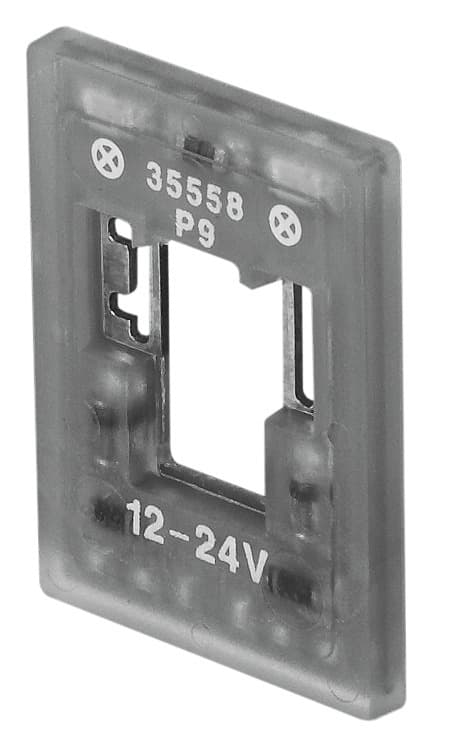

Product Model
mv-ld-12-24dc
Selling Points
- 1The MV-LD-12-24DC features an LED switching position indicator, providing clear visual feedback on the valve's status.
- 2This illuminating seal is mounted on solenoid valves via an M3 central screw, offering easy installation and versatility.
- 3With a product weight of 1.6 grams, the MV-LD-12-24DC is a lightweight yet reliable component for automation systems.
- 4Made from TPE-U(PU) material, this seal offers high durability and resistance to various environmental conditions, including temperatures from -25°C to 85°C.
- 5The MV-LD-12-24DC is designed with an IP65 rating, ensuring it is dust-resistant and can withstand harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Switching position indication | LED | Type of mounting | On air solenoid valve with M3 central screw |
Product weight | 1.6g | Electrical connection | Form B as per DIN EN 175301-803 Rectangular design MSV |
DC operating voltage range | 12V 24V | Protective earth connection | Available |
Nominal power luminous seal | 0.05W | Degree of protection | IP65 |
Ambient temperature | -25°C 85°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Housing material | TPE-U(PU) | Color | Transparent |
Manufacturer ID | 35558 |
Specifications may be subject to change without notice
