Product Model

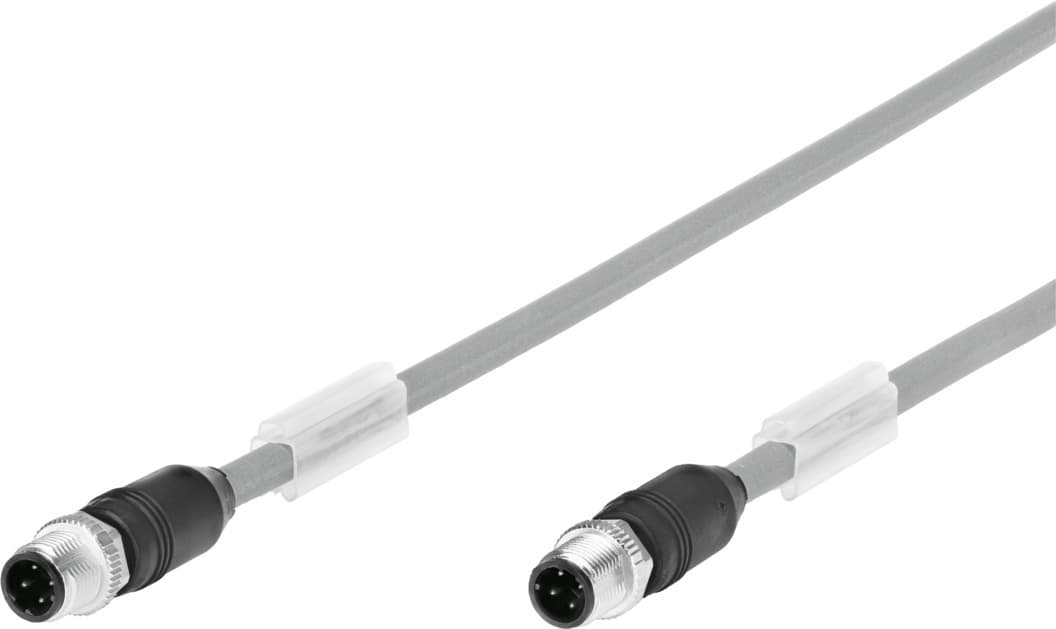

nebc-d12g4-es-0.5-s-d12g4-et
Selling Points
- 1Designed to work seamlessly with energy chains, ensuring reliable connectivity.
- 2Meets category 5 standards for high-speed data transmission.
- 3Secure and reliable connections with M12x1 D-coded plugs.
- 4Offers robust protection against dust and water.
- 5Durable TPE-U(PUR) cable sheath resistant to oils and chemicals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | With label holder | Contact durability | 50 |
Product weight | 64g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Plug |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1, D-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | Screw-type lock with hexagon AF13 and vertical knurling | Electrical connection for input 1, connection pattern | 00995612 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1, D-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, occupied pins/wires | 4 | Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 13 and longitudinal knurl |
Electrical connection 2, connection pattern | 00995612 | DC operating voltage range | 0V 30V |
Current rating at 40° C | 4A | Surge resistance | 0.8kV |
Note on surge resistance | Due to screening, a leakage flow of up to 20 mA is permissible. | Shield | yes |
Transmission characteristics | In accordance with category 5, EN 50173, class D According to category 5, ISO/IEC 11801, class D | Ethernet cable specification | Typ: CAT.5 |
Cable length | 0.5m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Energy chain > 2 million cycles, bending radius 100 mm | Bending radius, fixed cable installation | 40mm |
Bending radius, flexible cable installation | 100mm | Cable diameter | 6.7mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 4 x 0.34 mm2 |
Nominal conductor cross section | AWG22 | Degree of protection | IP65 IP67 |
Special features | Oil-resistant | Ambient temperature | -25°C 80°C |
Ambient temperature with flexible cable installation | -20°C 60°C | Storage temperature | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Green |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Die-cast zinc, nickel-plated | Material of pin contacts | Brass Gold-plated |
Insulating sheath material | PE | Threaded sleeve material | Die-cast zinc |
Manufacturer ID | 8040446 |
