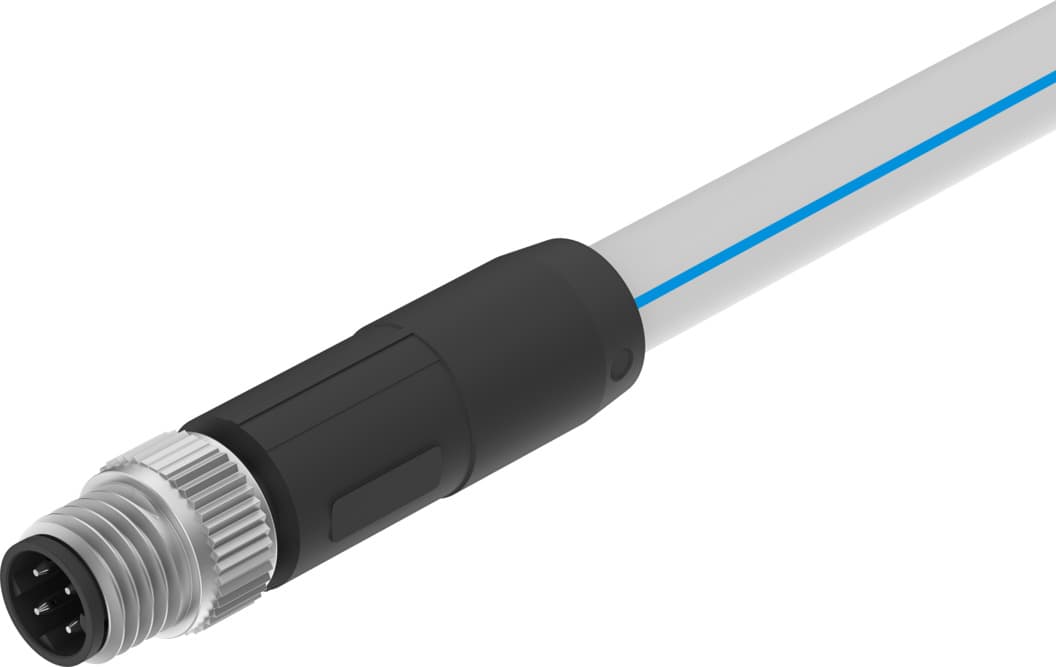

Product Model
nebc-d8g4-es-0.5-n-s-d8g4-et
Selling Points
- 1Durable and Reliable: Built to withstand harsh industrial environments with a bending radius of 20 mm for fixed cables and 75 mm for moving cables.
- 2Compliant with Standards: Meets EN 61076-2-114 and UL certification for safety and performance.
- 3Versatile Connectivity: Features M8x1, D-coded connectors for easy and secure connections.
- 4Energy Chain Compatible: Designed to work seamlessly with energy chains, ensuring efficient cable management.
- 5Long-Lasting Performance: Operates within a temperature range of -20°C to 60°C, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-114 | Certification | c UL us (OL) |
Certificate issuing authority | UL E474609 | Cable designation | Without label holder |
Contact durability | 100 | Product weight | 43g |
Electrical connection 1, function | Control side | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Plug | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M8x1, D-coded as per EN 61076-2-114 | Electrical connection 1, number of pins/wires | 4 |
Electrical connection 1, occupied pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock with longitudinal knurl |
Electrical connection for input 1, connection pattern | 00995938 | Electrical connection 2, function | Control side |
Electrical connection 2, design | Round | Electrical connection 2, connection type | Plug |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | M8x1, D-coded as per EN 61076-2-114 |
Electrical connection 2, number of pins/wires | 4 | Electrical connection 2, occupied pins/wires | 4 |
Electrical connection 2, type of mounting | Screw-type lock with longitudinal knurl | Electrical connection 2, connection pattern | 00995938 |
DC operating voltage range | 0V 30V | Nominal operating voltage DC | 24V |
Current rating at 40° C | 3A | Surge resistance | 1.5kV |
Reverse polarity protection | no | Protective earth connection | Not available |
Shield | yes | Transmission characteristics | as per system communication AP |
Cable length | 0.5m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 20mm |
Bending radius, flexible cable installation | 75mm | Cable diameter | 6.3mm |
Cable diameter tolerance | ± 0.2 mm | Cable design | 1 x (4 x AWG22) |
Nominal conductor cross section | AWG22 | Degree of protection | IP65 IP67 |
Note on degree of protection | In mounted state | Special features | Oil-resistant |
Ambient temperature | -20°C 60°C | Ambient temperature with flexible cable installation | -5°C 60°C |
Storage temperature | -40°C 70°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Silver-grey with sky blue stripe | Housing material | PA TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 8065123 |
Specifications may be subject to change without notice
