Product Model

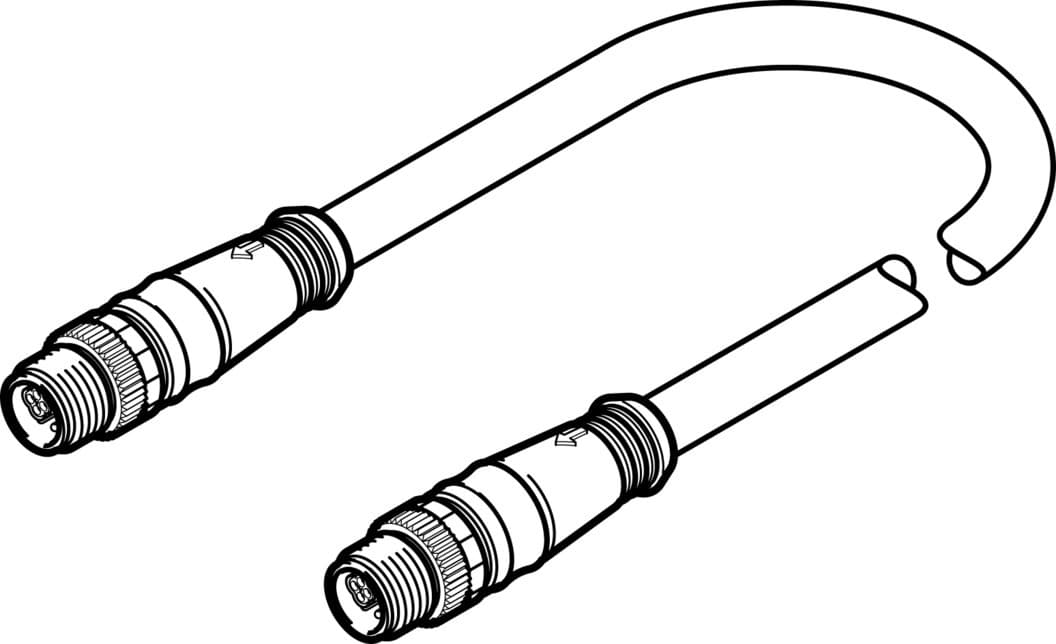

nebc-f12g8-kh-3-n-s-f12g8
Selling Points
- 1Hybrid Cable Design: Combines bus signal and power supply transmission in a single cable.
- 2Pre-Assembled: Ready-to-use cable with no need for additional assembly.
- 3Versatile Lengths: Available in lengths from 0.25 to 3 meters to suit various installation needs.
- 4Durable Construction: IP65 and IP67 rated for protection against dust and water.
- 5Certified Quality: UL recognized (OL) for high standards of electrical safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | Dimensions as per EN 61076-2-101 | Cable designation | Without label holder |
Contact durability | 100 | Product weight | 280g |
Electrical connection 1, function | Field device end Control side | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Hybrid plug | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M12x1, with Festo-specific coding | Electrical connection 1, number of pins/wires | 8 |
Electrical connection 1, occupied pins/wires | 8 | Electrical connection 1, type of mounting | Screw-type lock with AF 14 and longitudinal knurl |
Electrical connection 2, function | Field device end Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Hybrid plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1, with Festo-specific coding | Electrical connection 2, number of pins/wires | 8 |
Electrical connection 2, occupied pins/wires | 8 | Electrical connection 2, type of mounting | Screw-type lock with AF 14 and longitudinal knurl |
DC operating voltage range | 0V 30V | Current rating at 40° C | 7A |
Note on acceptable current load at 40°C | 1.5 A for conductor cross-section of 0.14 mm2 | Surge resistance | 0.8kV |
Cable length | 3m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 24mm |
Bending radius, flexible cable installation | 56mm | Cable diameter | 8mm |
Cable diameter tolerance | ± 0.2 mm | Cable design | (1 x (4 x 0.14 mm2)) + 4 x 0.75 mm2 |
Nominal conductor cross section | 0.14mm2 | Degree of protection | IP65 IP67 |
Note on degree of protection | In mounted state | Special features | Oil-resistant |
Ambient temperature | -25°C 70°C | Ambient temperature with flexible cable installation | -5°C 70°C |
Storage temperature | -40°C 70°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Light gray | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
Material of pin contacts | Brass, gold-plated | Insulating sheath material | PP |
Manufacturer ID | 576636 |
