Product Model

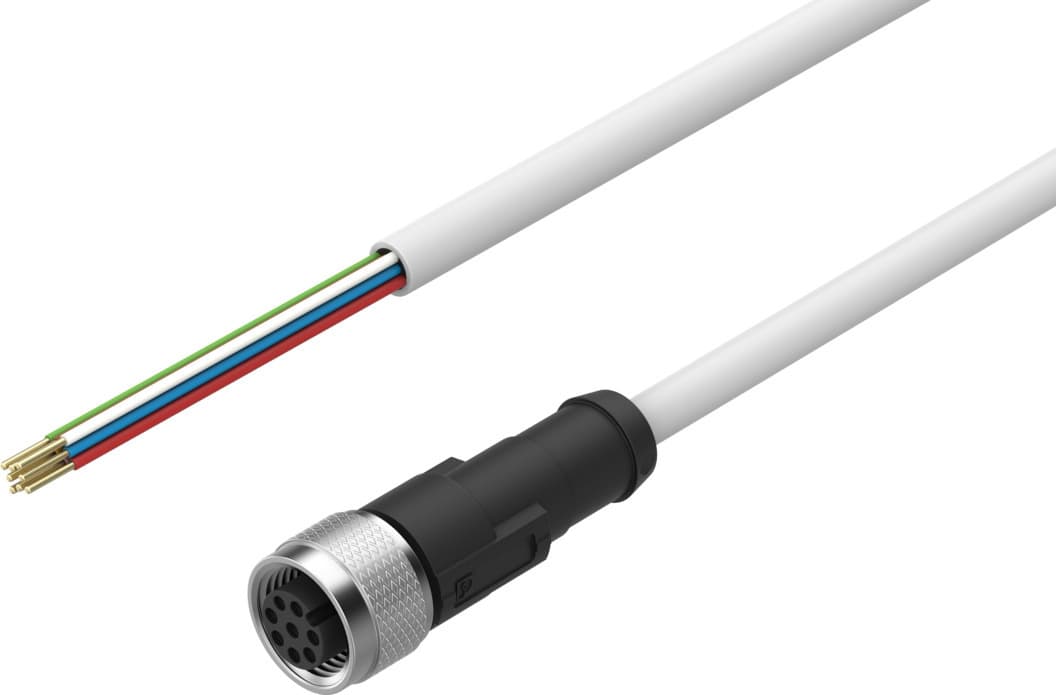

nebc-m12g8-e-10-n-b-le8
Selling Points
- 1High-Quality M12 Connector: Ensures reliable and secure connections in industrial settings.
- 210m Length: Provides ample cable length for various installation needs.
- 3IP65/67 Protection: Offers robust protection against dust and water, ensuring durability.
- 4Certified by UL: Meets stringent safety standards with UL certification (OL).
- 5Suitable for Energy Chains: Designed to work seamlessly with energy chains, enhancing efficiency in industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-101 | Certification | c UL us - Listed (OL) |
Certificate issuing authority | UL E474609 | Cable designation | Without label holder |
Product weight | 489g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00992265 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 8 |
Electrical connection 2, occupied pins/wires | 8 | DC operating voltage range | 0V 30V |
Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
Surge resistance | 0.8kV | Shield | no |
Cable length | 10m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 30mm |
Bending radius, flexible cable installation | 30mm | Cable diameter | 6mm |
Cable diameter tolerance | ± 0.2 mm | Cable design | 8 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Wire ends | Stripped |
Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 90°C | Ambient temperature with flexible cable installation | -25°C 90°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Silver-grey |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Die-cast zinc, nickel-plated | Seals material | NBR |
Material of pin contacts | Brass | Insulating sheath material | PP |
Manufacturer ID | 8094482 |
Specifications may be subject to change without notice
