Product Model
nebc-s1g25-k-2.5-n-le26
Selling Points

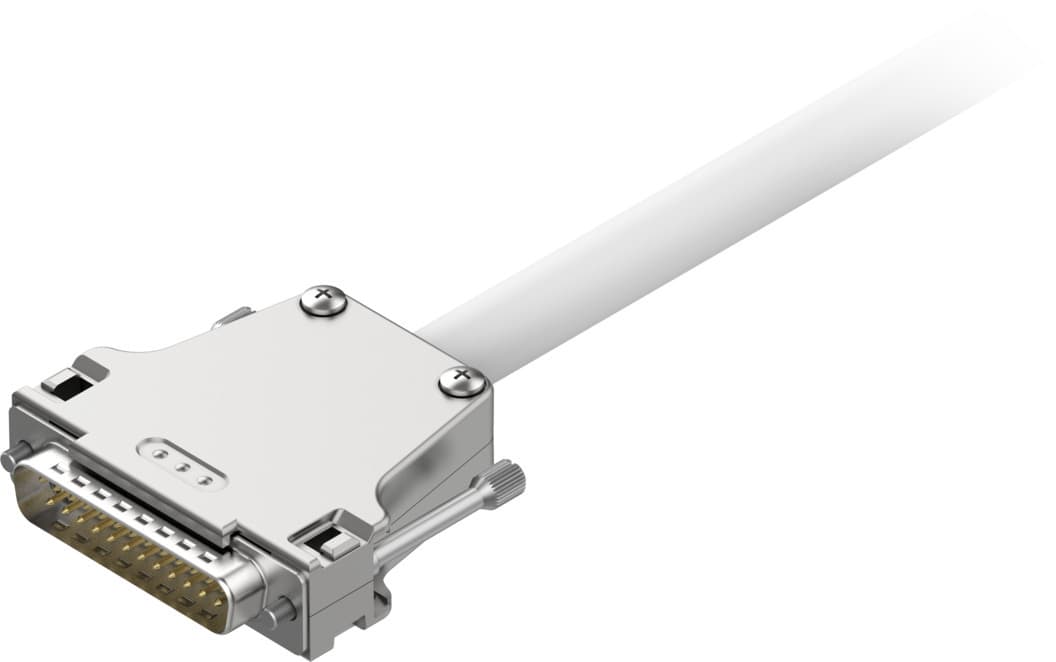

- 1The Festo NEBC-S1G25-K-2.5-N-LE26 control cable offers a secure and stable electrical connection with a straight plug connector and 25-pin Sub-D design.
- 2Built with a robust PVC cable sheath and nickel-plated copper alloy contacts, this cable ensures long-lasting performance in various environments.
- 3The cable is RoHS-compliant, ensuring it meets the European Union's regulations for the restriction of hazardous substances.
- 4The cable can be mounted in any position, making it suitable for a wide range of applications, including motor controllers.
- 5With an operating voltage range of 0 to 30 V DC and a nominal operating voltage of 24 V DC, this cable supports various control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Mounting position | Any |
Product weight | 570g | Electrical connection 1 | Straight plug, Sub-D, 25-pin |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular |
Electrical connection 1, connection type | Plug | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | Sub-D | Electrical connection 1, number of pins/wires | 25 |
Electrical connection 1, occupied pins/wires | 25 | Electrical connection 1, type of mounting | 2x screw, 4-40 UNC |
Electrical connection for input 1, connection pattern | 00995643 | Electrical connection 2 | Open end, 26-wire |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 26 |
Electrical connection 2, occupied pins/wires | 26 | DC operating voltage range | 0V 30V |
Nominal operating voltage DC | 24V | Current rating at 40° C | 3.9A |
Current rating | 3.9A | Surge resistance | 0.8kV |
Shield | yes | Cable length | 2.5m |
Cable characteristic | Standard | Connector cable test conditions | Flexural strength: as per Festo standard |
Min. cable bending radius | 220mm | Bending radius, fixed cable installation | 220mm |
Cable diameter | 10.8mm | Cable diameter tolerance | ± 0.2 mm |
Cable design | 5 x (2 x 0.25 mm2) + 16 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
Connection cross section | 0.25mm2 | Wire ends | Cable end sleeve Pin terminal |
Degree of protection | IP20 | Note on degree of protection | In mounted state |
Ambient temperature | -30°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
Color cable sheath | Gray | Housing material | Die-cast zinc, nickel-plated |
Material of pin contacts | Copper alloy, tin-plated Nickel-plated and gold-plated | Insulating sheath material | PVC |
Manufacturer ID | 552254 |
Specifications may be subject to change without notice
