Product Model
nebm-l15g24-es-5-le24
Selling Points

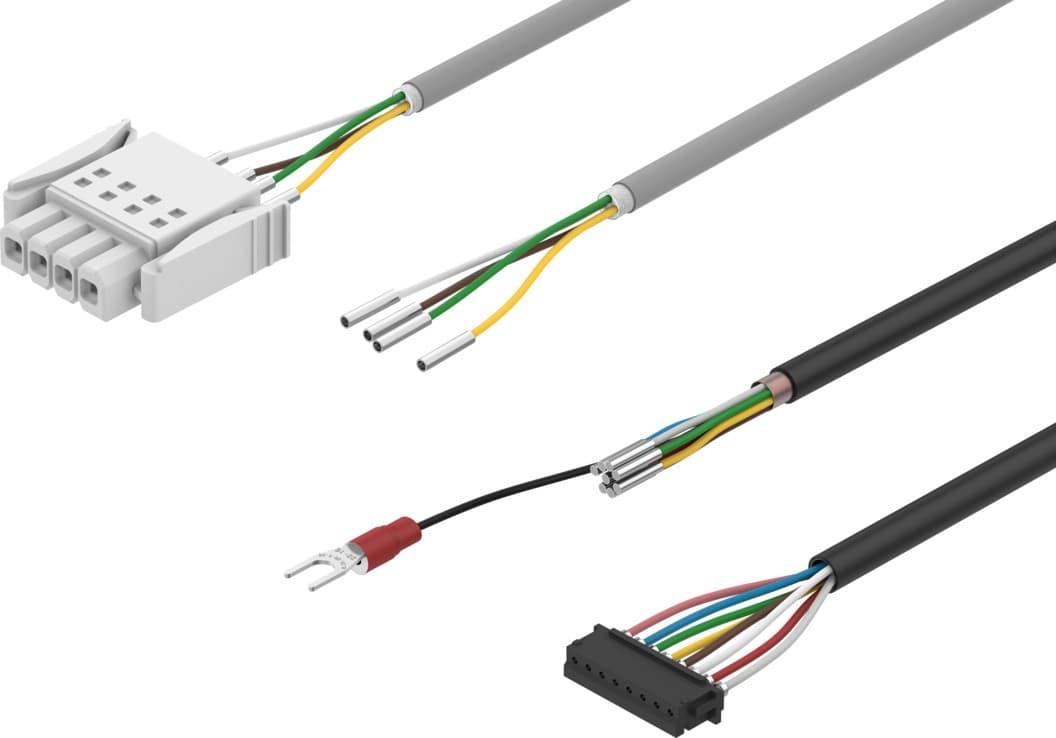

- 1The Festo NEBM-L15G24-ES-5-LE24 connecting cable is designed for robust electrical connections, ensuring reliable performance in industrial settings.
- 2This cable features a durable construction with a cable diameter of 7.5 mm and a nominal cross-sectional area of 0.75 mm², suitable for various applications.
- 3The cable operates within a voltage range of 0 to 60 V DC and 0 to 250 V AC, making it versatile for different electrical systems.
- 4The NEBM-L15G24-ES-5-LE24 cable is shielded, providing immunity to surges up to 1.5 kV and ensuring data integrity in noisy environments.
- 5With a current rating of 5 A at 40°C and a bending radius of ≥30 mm for fixed cables, this connecting cable is ideal for robot applications and energy chains.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Product weight | 510g |
Electrical connection 1, function | Field device end | Electrical connection 1, connection type | 4x socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram L15 |
Electrical connection 1, number of pins/wires | 24 | Electrical connection 1, occupied pins/wires | 24 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | 4x cables |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 24 |
Electrical connection 2, occupied pins/wires | 24 | Nominal operating voltage DC | 24V |
Shield | yes | Cable length | 5m |
Cable characteristic | Suitable for energy chains | Bending radius, fixed cable installation | 23.1mm |
Bending radius, flexible cable installation | 33mm | Cable diameter | 3.3mm 4.6mm |
Cable design | 2 x 4 x 0.25 mm2 + 2 x 8 x 0.08 mm2 | Nominal conductor cross section | 0.08mm2 0.25mm2 |
Wire ends | Cable end sleeve | Ambient temperature | -40°C 70°C |
Ambient temperature with flexible cable installation | -5°C 70°C | Storage temperature | -40°C 70°C |
Relative air humidity | 0 - 100 % | Nominal altitude of use above sea level | <= 2000 m NHN |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
KC characters | KC EMC | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Material of cable sheath | PUR |
Manufacturer ID | 8178803 |
Specifications may be subject to change without notice
