Product Model

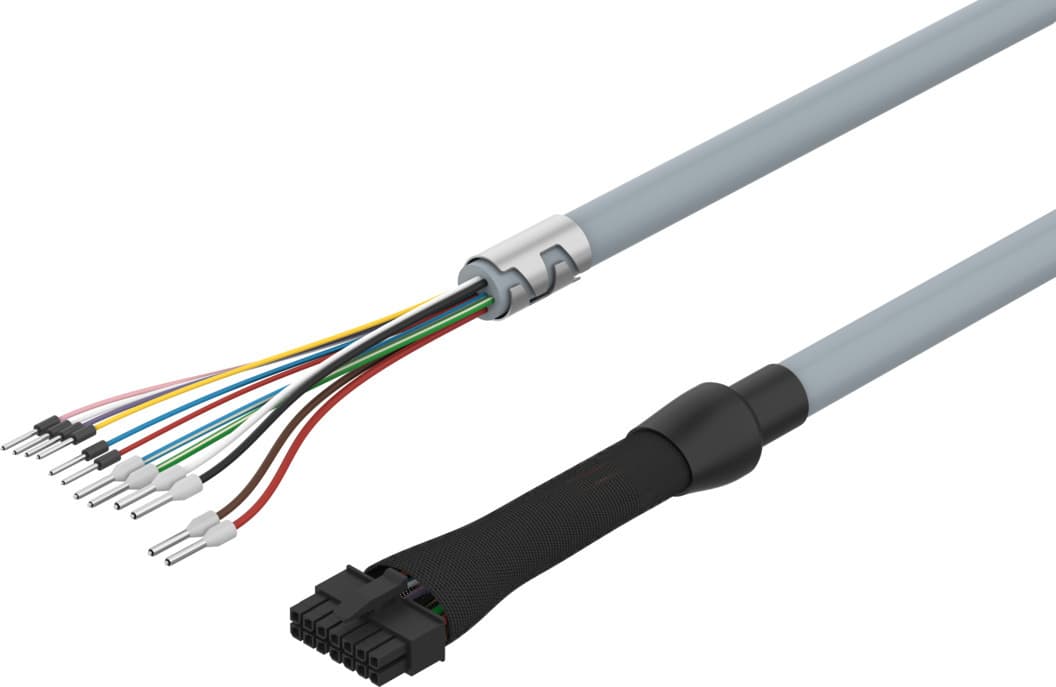

nebm-l5g14-eh-10-q6n-le12
Selling Points
- 1High-Quality Shielding: The NEBM-L5G14-EH-10-Q6N-LE12 motor cable features robust shielding to ensure reliable electrical connections and protect against electromagnetic interference.
- 2Flexible Installation: With a flexible bending radius of 78.75 mm, this cable is ideal for various installation scenarios, including those with complex routing requirements.
- 3Durable Construction: Made from TPE-U(PUR) and PP materials, the cable sheath and insulating sheath provide excellent durability and resistance to environmental factors.
- 4Technical Certifications: The cable meets stringent technical standards, including IEC 60757:2021-06, ensuring compliance with industry regulations.
- 5Easy Mounting: The snap-locking hybrid socket makes mounting and connecting the cable straightforward, reducing installation time and ensuring secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Product weight | 1460g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Hybrid socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram L5 |
Electrical connection 1, number of pins/wires | 14 | Electrical connection 1, occupied pins/wires | 13 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00997533 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 12 | Electrical connection 2, occupied pins/wires | 12 |
Electrical connection 2, type of mounting | Inserted | Electrical connection 2, connection pattern | 00997534 |
DC operating voltage range | 0V 48V | Current rating at 40° C | 7.6A |
Surge resistance | 1.5kV | Shield | yes |
Cable length | 10m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 42mm |
Bending radius, flexible cable installation | 78.75mm | Cable diameter | 10.5mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 4 x 0.5 mm2 + 2 x 0.5 mm2 + 6 x 0.15 mm2 |
Nominal conductor cross section | 0.5mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP20 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 90°C | Ambient temperature with flexible cable installation | -25°C 80°C |
Overvoltage category | I | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Insulating sheath material | PP |
Manufacturer ID | 8181672 |
Specifications may be subject to change without notice
