Product Model
nebm-lx/m17-
Selling Points

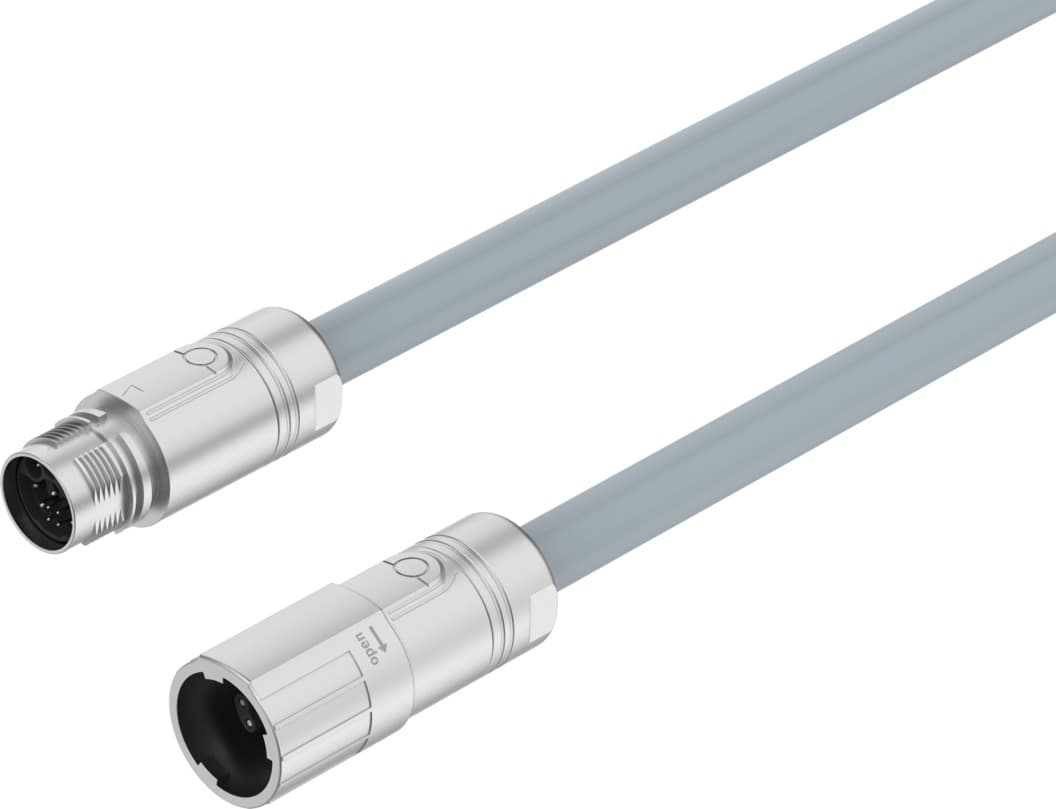

- 1The Festo NEBM-LX/M17- motor cable is designed to meet the standards of EN 61984, ensuring high-quality and reliable electrical connections in industrial settings.
- 2This cable features a hybrid socket connection with a round design, supporting up to 12 connections/cores and is suitable for robot applications.
- 3The cable has a bending radius of ≥30 mm for fixed cables and ≥75 mm for moving cables, making it durable for various industrial uses.
- 4The NEBM-LX/M17- cable is made from TPE-U(PUR) and PVC materials, ensuring insulation and protection against environmental conditions.
- 5With a current rating of up to 7.6 A at 40°C and immunity to surge voltage of 1.5 kV, this cable is ideal for energy chains and servo drive applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Product weight | 365g 1880g | Electrical connection | 12-pin 14-pin |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Rectangular Round |
Electrical connection 1, connection type | Hybrid socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | Plug pattern L10 Connection diagram L5 M17x0.75 | Electrical connection 1, number of pins/wires | 14 |
Electrical connection 1, occupied pins/wires | 12 | Electrical connection 1, type of mounting | Snap-locking Screw-type lock |
Electrical connection for input 1, connection pattern | 00997531 00997533 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Socket Cable | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | Plug pattern L10 Plug pattern L5 M17x0.75 Open end | Electrical connection 2, number of pins/wires | 12 |
Electrical connection 2, occupied pins/wires | 13 | Electrical connection 2, type of mounting | Snap-locking Screw-type lock Inserted |
Electrical connection 2, connection pattern | 00997532 00997534 | DC operating voltage range | 0V 48V |
Current rating at 40° C | 7.6A 17.8A | Surge resistance | 1.5kV |
Shield | yes | Cable length | 0.5m 20m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 42mm 43.2mm | Bending radius, flexible cable installation | 78.75mm 81mm |
Cable diameter | 10.5mm 10.8mm | Cable diameter tolerance | ± 0.3 mm |
Cable design | 4 x 0.5 mm2 + 2 x 0.5 mm2 + 6 x 0.15 mm2 4 x 0.75 mm2 + 2 x 0.5 mm2 + 6 x 0.15 mm2 4 x 1.5 mm2 + 2 x 0.5 mm2 + 6 x 0.15 mm2 | Nominal conductor cross section | 0.75mm2 |
Wire ends | Cable end sleeve Pin terminal | Degree of protection | IP20 IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 90°C |
Ambient temperature with flexible cable installation | -25°C 80°C | Overvoltage category | I |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant Halogen-free |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Insulating sheath material | PP | Manufacturer ID | 8181663 |
Specifications may be subject to change without notice
