Product Model
nebm-m12g8-e- -le8
Selling Points

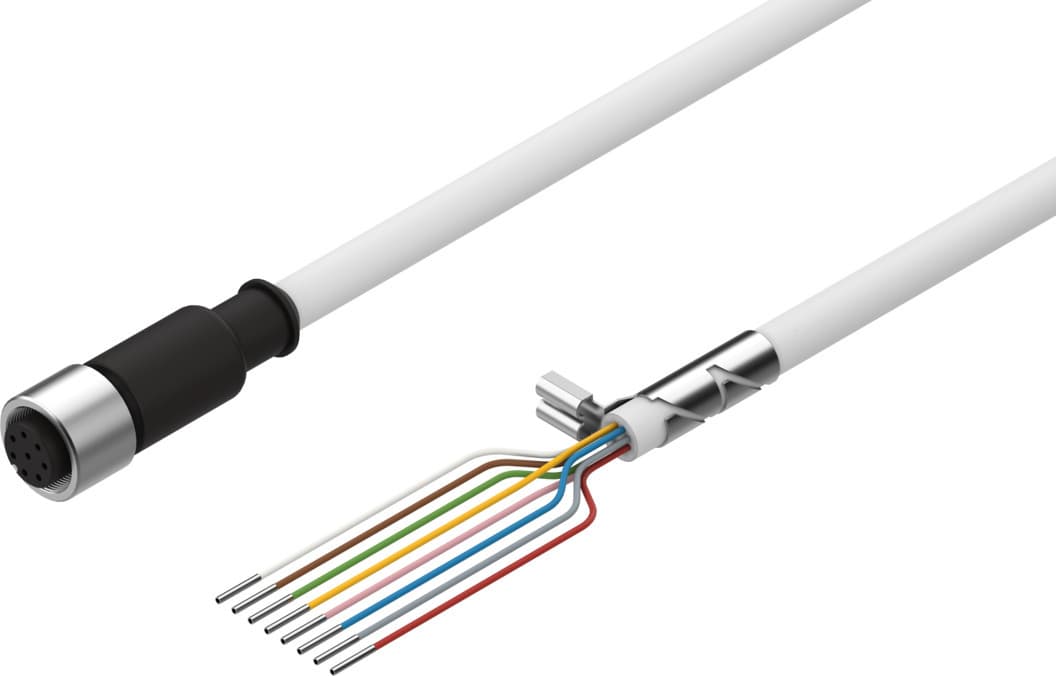

- 1The Festo NEBM-M12G8-E-LE8 encoder cable is designed for use in industrial settings, offering reliable and efficient connectivity between field devices and controllers.
- 2This cable features a M12x1, T-coded connector system, ensuring secure and robust connections that meet industry standards.
- 3With a cable diameter of 7.5 mm and a nominal cross-sectional conductor of 0.75 mm², the NEBM-M12G8-E-LE8 provides optimal signal transmission and durability.
- 4The cable is suitable for robot applications and has a bending radius of ≥30 mm for fixed cables and ≥75 mm for moving cables, making it versatile for various robotic systems.
- 5The NEBM-M12G8-E-LE8 encoder cable is CE marked and complies with UK RoHS instructions, ensuring it meets all necessary safety and environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 8 | Electrical connection 2, occupied pins/wires | 8 |
DC operating voltage range | 0V 30V | Nominal operating voltage DC | 24V |
Operating voltage range AC | 0V 30V | Nominal operating voltage AC | 24V |
Shield | yes | Cable length | 1m 25m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 68mm |
Cable diameter | 6.8mm | Cable design | 4 x 2 x 0.14 mm2 |
Nominal conductor cross section | 0.14mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Manufacturer ID | 1451591 |
Specifications may be subject to change without notice
