Product Model
nebm-m12w8-e-7-le8
Selling Points

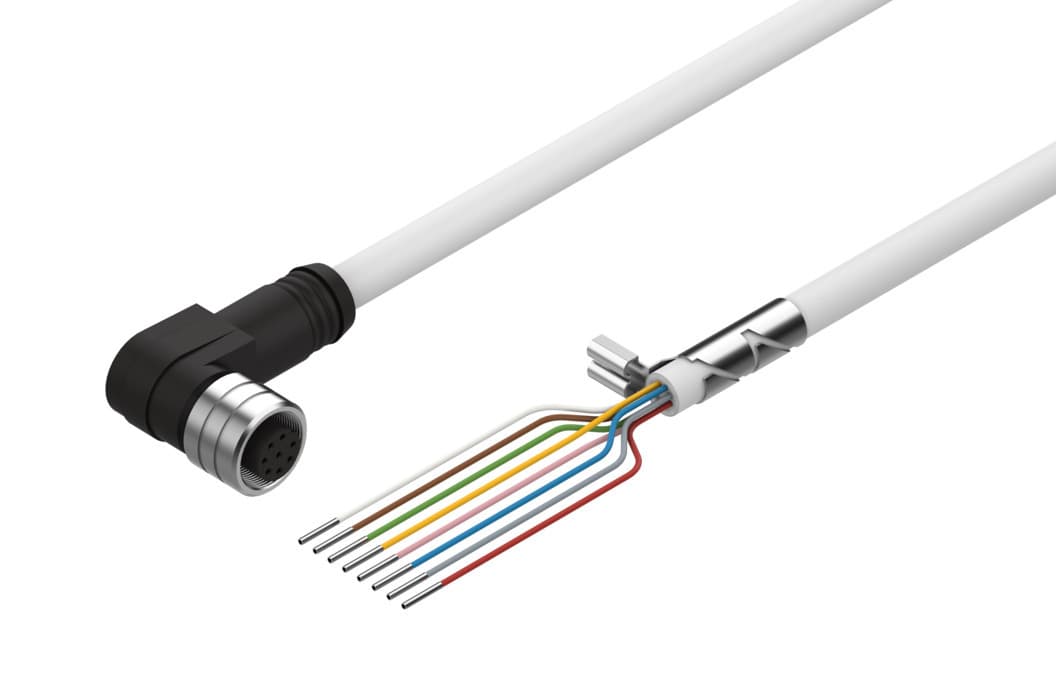

- 1The NEBM-M12W8-E-7-LE8 encoder cable by Festo offers a robust electrical connection with an M12x1, A-coded connector system, ensuring secure and reliable data transmission in industrial environments.
- 2This cable features an operational voltage range of DC 0 V to 30 V and AC 0 V to 30 V, making it suitable for a wide range of applications, including those requiring precise control and monitoring.
- 3The cable is designed with a bending radius of 68 mm for moving cables and a cable diameter of 6.8 mm, providing flexibility and durability in various industrial settings.
- 4The NEBM-M12W8-E-7-LE8 encoder cable is shielded, offering enhanced immunity to electromagnetic interference (EMI) and ensuring reliable data transmission in noisy environments.
- 5With a degree of protection IP65 and an ambient temperature range of -40°C to 80°C, this cable is ideal for use in harsh industrial conditions, including those with moving parts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
Electrical connection for input 1, connection pattern | 00992265 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 8 | Electrical connection 2, occupied pins/wires | 8 |
DC operating voltage range | 0V 30V | Nominal operating voltage DC | 24V |
Operating voltage range AC | 0V 30V | Nominal operating voltage AC | 24V |
Shield | yes | Cable length | 7m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 68mm |
Cable diameter | 6.8mm | Cable design | 4 x 2 x 0.14 mm2 |
Nominal conductor cross section | 0.14mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Manufacturer ID | 1451677 |
Specifications may be subject to change without notice
