Product Model

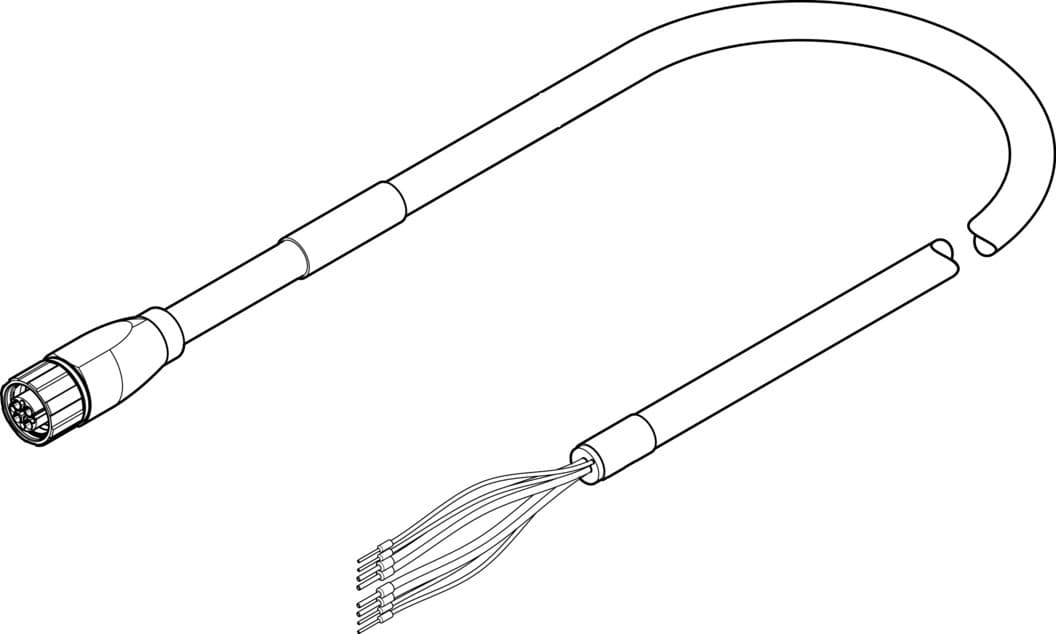

nebm-m16g8-e-7.5-q7-le8-1
Selling Points
- 1Reliable Connectivity: The Festo NEBM-M16G8-E-7.5-Q7-LE8-1 motor cable ensures high-quality connectivity for servo motors, stepper motors, and motor controllers, ensuring smooth operation and minimal downtime.
- 2Compliant with Standards: This cable is based on the standard EN 61984, ensuring it meets the highest safety and performance standards for electrical connections.
- 3Durable Design: With a cable diameter of 11 mm and a bending radius of ≥55 mm for fixed installations and ≥110 mm for flexible installations, this cable is designed to withstand various mechanical stresses.
- 4Wide Operating Range: The cable operates within a wide voltage range of 0 V to 600 V DC and AC, with a current rating of up to 12 A at 40°C, making it suitable for various applications.
- 5Robust Shielding: Equipped with robust shielding, this cable provides immunity to surges up to 6 kV, ensuring reliable performance even in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Product weight | 1300g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M16x0.75 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 6 |
Electrical connection for input 1, connection pattern | 00995654 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 8 | Electrical connection 2, occupied pins/wires | 6 |
DC operating voltage range | 0V 600V | Note on operating voltage range DC | 0 - 300 V for conductor cross-section of 0.25 mm2 |
Operating voltage range AC | 0V 600V | Note on operating voltage range AC | 0 - 300 V for conductor cross-section of 0.25 mm2 |
Current rating at 40° C | 12A | Note on acceptable current load at 40°C | 4 A for conductor cross-section of 0.25 mm2 |
Surge resistance | 6kV | Note on surge resistance | 4 kV for a conductor cross-section of 0.25 mm2 |
Shield | yes | Cable length | 7.5m |
Cable characteristic | Suitable for energy chains | Bending radius, fixed cable installation | 55mm |
Bending radius, flexible cable installation | 110mm | Cable diameter | 11mm |
Cable design | 4 x 0.75 mm2 + 2 x (2 x 0.25 mm2) | Nominal conductor cross section | 0.25mm2 |
Wire ends | Cable end sleeve as per DIN 46228-A..-10 Cable end sleeve as per DIN 46228-E..-10 | Degree of protection | IP65 |
Note on degree of protection | In mounted state | Ambient temperature | -50°C 90°C |
Ambient temperature with flexible cable installation | -40°C 90°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Orange | Insulating sheath material | TPE-E |
Manufacturer ID | 5391548 |
Specifications may be subject to change without notice
