Product Model
nebm-m17g12-eh-5-q7n-le12
Selling Points

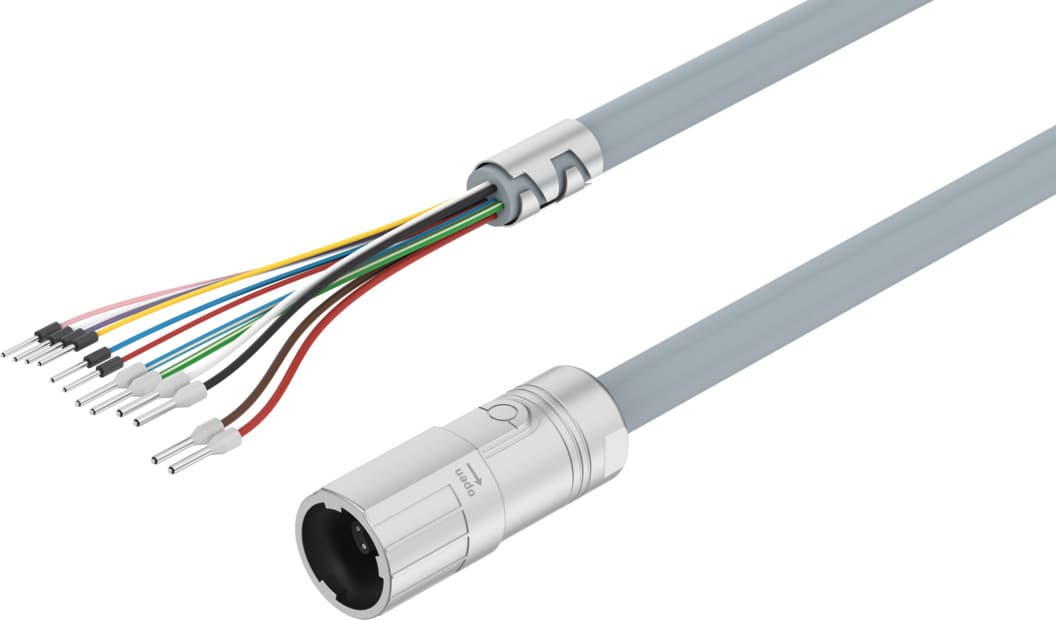

- 1The NEBM-M17G12-EH-5-Q7N-LE12 motor cable is designed for use in energy chains, ensuring reliable connectivity and flexibility in industrial settings.
- 2This cable features a shielded design with a cable diameter of 10.5 mm, providing excellent electrical insulation and protection against environmental factors.
- 3With a current rating of 11.7 A at 40°C, the NEBM-M17G12-EH-5-Q7N-LE12 is suitable for high-power applications, making it ideal for demanding industrial environments.
- 4The cable is constructed with a robust TPE-U(PUR) sheath and PP insulating sheath, ensuring durability and compliance with RoHS regulations.
- 5The NEBM-M17G12-EH-5-Q7N-LE12 supports ambient temperatures ranging from -25°C to +80°C, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Product weight | 800g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Hybrid socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M17x0.75 |
Electrical connection 1, number of pins/wires | 12 | Electrical connection 1, occupied pins/wires | 12 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00997531 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 12 | Electrical connection 2, occupied pins/wires | 12 |
Electrical connection 2, type of mounting | Inserted | Electrical connection 2, connection pattern | 00997532 |
DC operating voltage range | 0V 48V | Current rating at 40° C | 11.7A |
Surge resistance | 1.5kV | Shield | yes |
Cable length | 5m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 42mm |
Bending radius, flexible cable installation | 78.75mm | Cable diameter | 10.5mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 4 x 0.75 mm2 + 2 x 0.5 mm2 + 6 x 0.15 mm2 |
Nominal conductor cross section | 0.15mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 90°C | Ambient temperature with flexible cable installation | -25°C 80°C |
Overvoltage category | I | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Insulating sheath material | PP |
Manufacturer ID | 8195459 |
Specifications may be subject to change without notice
