Product Model

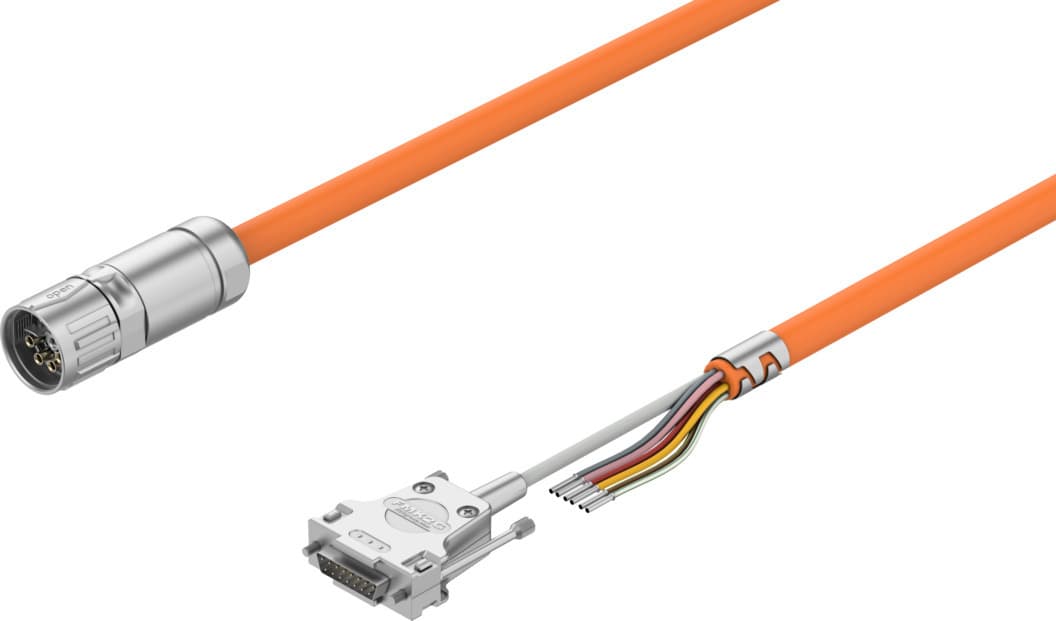

nebm-m23g15-eh-10-q7n-s1leg21
Selling Points
- 1The NEBM-M23G15-EH-10-Q7N-S1LEG21 motor cable supports high current ratings of up to 17.8 A, making it suitable for demanding industrial applications.
- 2Built with a shielded design and high-alloy stainless steel screw-type lock, this cable ensures reliable and durable performance in various environments.
- 3Featuring a hybrid socket with 15 pins and 12 occupied pins, this cable offers versatile connectivity options for field device and control side applications.
- 4The cable operates within a wide voltage range of 0 to 850 V DC and 0 to 630 V AC, making it adaptable to various industrial settings.
- 5Constructed with TPE-U(PUR) housing and PVC insulating sheath, this cable is halogen-free and RoHS-compliant, ensuring safety and environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Product weight | 1990g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Hybrid socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M23x1 |
Electrical connection 1, number of pins/wires | 15 | Electrical connection 1, occupied pins/wires | 12 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995912 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | Sub-D and open end |
Electrical connection 2, number of pins/wires | 21 | Electrical connection 2, occupied pins/wires | 12 |
Electrical connection 2, type of mounting | Inserted | Electrical connection 2, connection pattern | 00995641 |
DC operating voltage range | 0V 850V | Operating voltage range AC | 0V 630V |
Current rating at 40° C | 11.7A | Surge resistance | 6kV |
Shield | yes | Cable length | 10m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 48mm | Bending radius, flexible cable installation | 90mm |
Cable diameter | 12mm | Cable diameter tolerance | ± 0.3 mm |
Cable design | 4 x 0.75 mm2 + 1 x (2 x 0.75 mm2) + 1 x (2 x 0.24 mm2 + 2 x 2 x 0.15 mm2) | Nominal conductor cross section | 0.24mm2 |
Wire ends | Cable end sleeve | Degree of protection | IP20 IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 90°C |
Ambient temperature with flexible cable installation | -25°C 80°C | Overvoltage category | III |
CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Insulating sheath material | PP | Manufacturer ID | 8190887 |
Specifications may be subject to change without notice
