Product Model

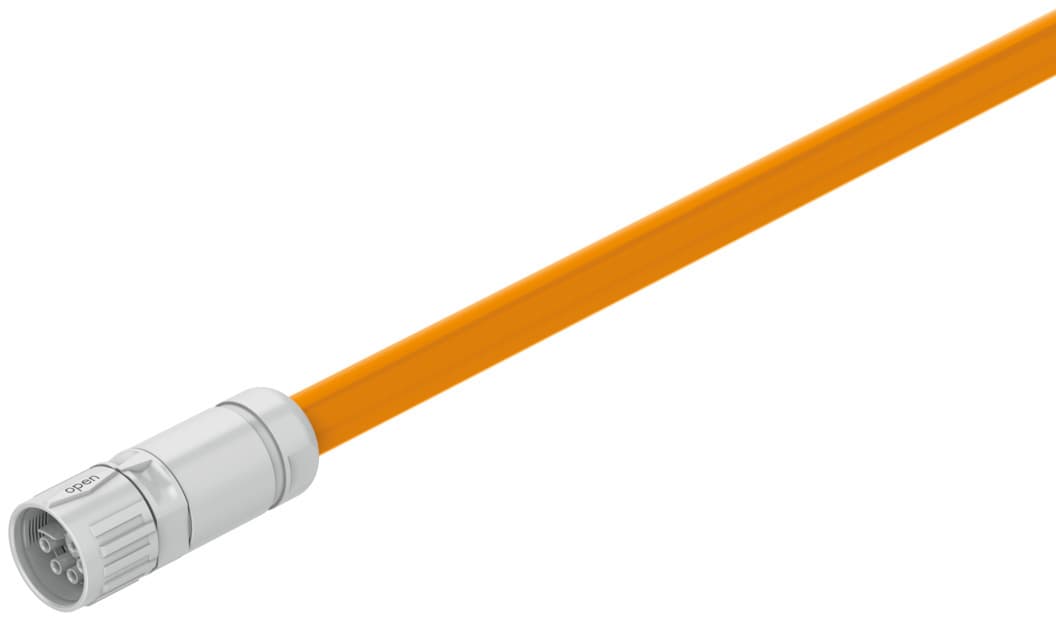

nebm-m40g15-eh-2.5-q11n-r3leg14
Selling Points
- 1The Festo NEBM-M40G15-EH-2.5-Q11N-R3LEG14 motor cable is designed with a hybrid socket, ensuring a secure and reliable electrical connection. Its snap-locking mechanism provides easy installation and durability.
- 2This motor cable features a robust construction with a cable diameter of 16.4 mm and a tolerance of ±0.3 mm, making it suitable for various industrial applications.
- 3The cable is designed to operate within a wide voltage range of DC 0 V to 850 V and AC 0 V to 630 V, ensuring compatibility with different power sources.
- 4The NEBM-M40G15-EH-2.5-Q11N-R3LEG14 motor cable is IP67 rated, providing excellent protection against dust and water ingress, making it ideal for harsh environments.
- 5This motor cable is RoHS-compliant and halogen-free, ensuring compliance with environmental regulations and reducing the risk of pollution and corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Product weight | 1028g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Hybrid socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M40x1 |
Electrical connection 1, number of pins/wires | 15 | Electrical connection 1, occupied pins/wires | 12 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00997393 |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Plugs and cables |
Electrical connection 2, cable outlet | Straight | Electrical connection 2, connection technology | RJ45 and open end |
Electrical connection 2, number of pins/wires | 14 | Electrical connection 2, occupied pins/wires | 12 |
DC operating voltage range | 0V 850V | Operating voltage range AC | 0V 630V |
Current rating at 40° C | 31.9A | Surge resistance | 6kV |
Cable length | 2.5m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 65.6mm |
Bending radius, flexible cable installation | 123mm | Cable diameter | 16.4mm |
Cable diameter tolerance | ± 0.3 mm | Cable design | 4 x 4 mm2 + 1 x (2 x 1.5 mm2) + 1 x (2 x 0.24 mm2 + 2 x 2 x 0.15 mm2) |
Wire ends | Cable end sleeve | Degree of protection | IP67 |
Note on degree of protection | Depending on manifold block | Ambient temperature | -40°C 90°C |
Ambient temperature with flexible cable installation | -25°C 80°C | CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant Halogen-free | Contamination level | 3 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Insulating sheath material | PP |
Manufacturer ID | 5251395 |
Specifications may be subject to change without notice
