Product Model
nebm-m40g15-eh- -q12n-r3leg14
Selling Points

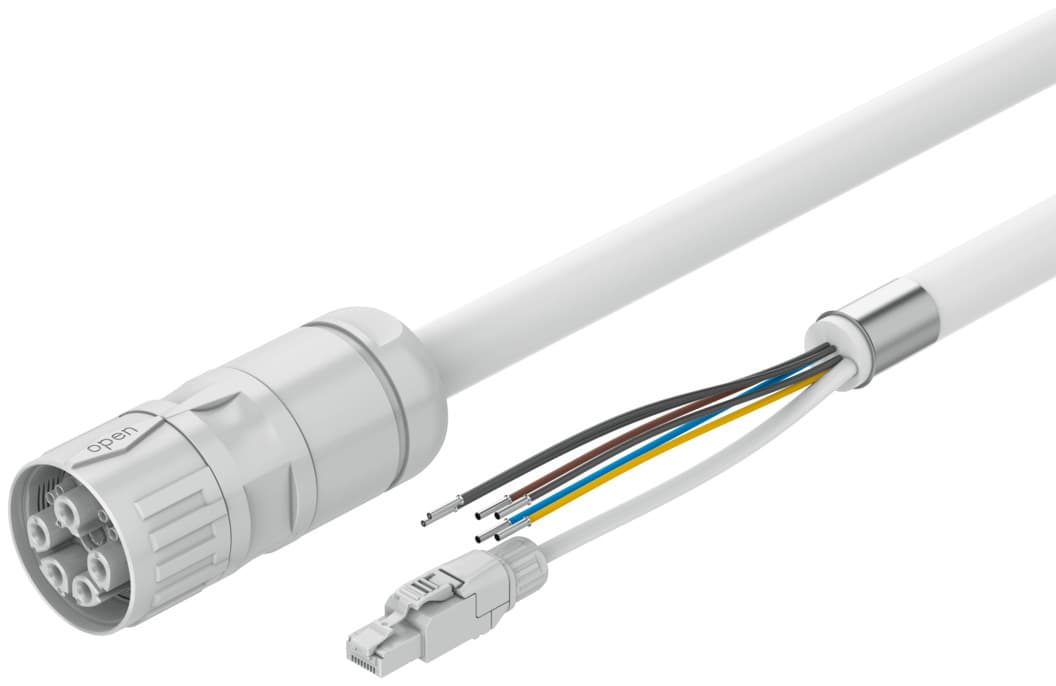

- 1The Festo NEBM-M40G15-EH-Q12N-R3LEG14 motor cable features a hybrid socket with 15 pins/wires, ensuring a robust and reliable electrical connection for field device ends.
- 2With a surge resistance of 6 kV, this cable is designed to handle high-voltage surges, making it suitable for demanding industrial applications.
- 3The cable is rated IP67, providing excellent protection against dust and water ingress, ensuring reliable performance in harsh environments.
- 4The cable has a bending radius of 123 mm for flexible installations and 65.6 mm for fixed installations, offering flexibility in various installation scenarios.
- 5The NEBM-M40G15-EH-Q12N-R3LEG14 cable is compliant with EN 61984 and RoHS directives, ensuring it meets the highest industry standards for safety and environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Cable designation | Without label holder |
Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
Electrical connection 1, connection type | Hybrid socket | Electrical connection 1, cable outlet | Straight |
Electrical connection 1, connection technology | M40x1 | Electrical connection 1, number of pins/wires | 15 |
Electrical connection 1, occupied pins/wires | 12 | Electrical connection 1, type of mounting | Snap-locking |
Electrical connection for input 1, connection pattern | 00997393 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Plugs and cables | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | RJ45 and open end | Electrical connection 2, number of pins/wires | 14 |
Electrical connection 2, occupied pins/wires | 12 | DC operating voltage range | 0V 850V |
Operating voltage range AC | 0V 630V | Current rating at 40° C | 40A |
Surge resistance | 6kV | Cable length | 0.5m 100m |
Cable characteristic | Suitable for energy chains | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 74.8mm | Bending radius, flexible cable installation | 140.25mm |
Cable diameter | 18.7mm | Cable diameter tolerance | ± 0.3 mm |
Cable design | 4 x 6 mm2 + 1 x (2 x 1.5 mm2) + 1 x (2 x 0.24 mm2 + 2 x 2 x 0.15 mm2) | Wire ends | Cable end sleeve |
Degree of protection | IP67 | Note on degree of protection | Depending on manifold block |
Ambient temperature | -40°C 90°C | Ambient temperature with flexible cable installation | -25°C 80°C |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free |
Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Material of cable sheath | PUR | Color cable sheath | Gray |
Insulating sheath material | PP | Manufacturer ID | 5251401 |
Specifications may be subject to change without notice
