Product Model
nebm-s1g15-e-2.5-q7-le6
Selling Points

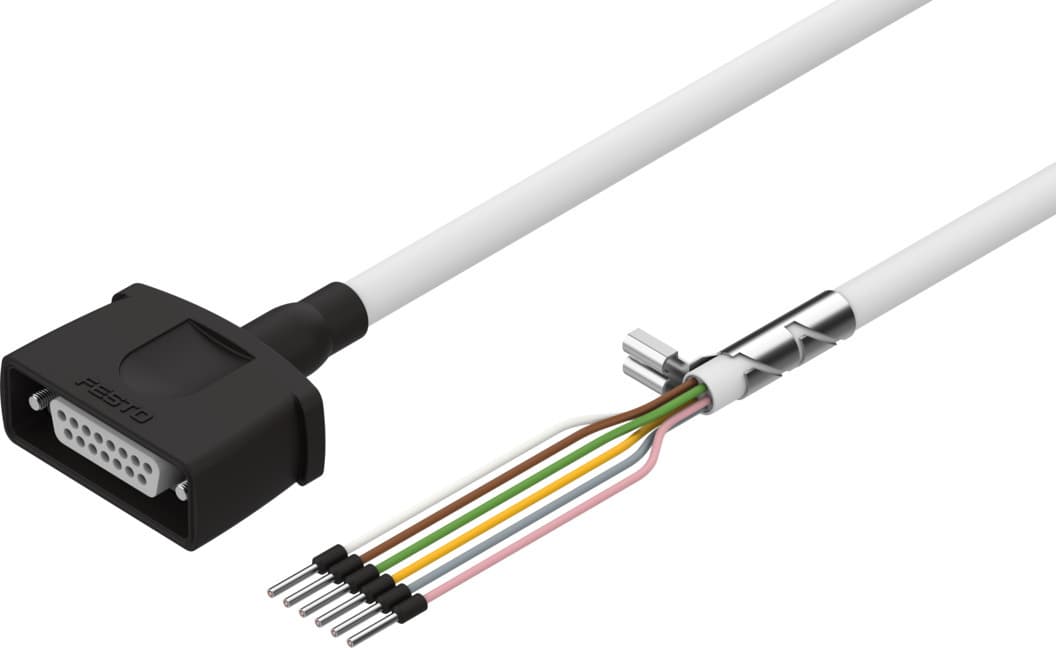

- 1Reliable Connectivity: The Festo NEBM-S1G15-E-2.5-Q7-LE6 motor cable ensures reliable connectivity in servo motors, stepper motors, and motor controllers, making it ideal for demanding applications.
- 2Technical Specifications: This cable features a nominal operating voltage of 24V DC, a cable length of 2.5 meters, and is designed with a shielded 6 x 0.75 mm² conductor for optimal performance.
- 3Durability and Protection: With an IP65 degree of protection, this cable is suitable for harsh environments and can withstand ambient temperatures ranging from -40°C to 80°C.
- 4Flexible Installation: The cable has a bending radius of ≥80 mm, making it flexible and easy to install in various settings, including energy chains.
- 5Compliance and Safety: The NEBM-S1G15-E-2.5-Q7-LE6 is RoHS-compliant and features a TPE-U(PUR) cable sheath, ensuring it meets stringent safety and environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Sub-D |
Electrical connection 1, number of pins/wires | 15 | Electrical connection 1, occupied pins/wires | 10 |
Electrical connection for input 1, connection pattern | 00995640 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
Shield | yes | Cable length | 2.5m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 80mm |
Cable diameter | 8mm | Cable design | 6 x 0.75 mm2 |
Nominal conductor cross section | 0.75mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Gray | Insulating sheath material | PP |
Manufacturer ID | 1450835 |
Specifications may be subject to change without notice
