Product Model

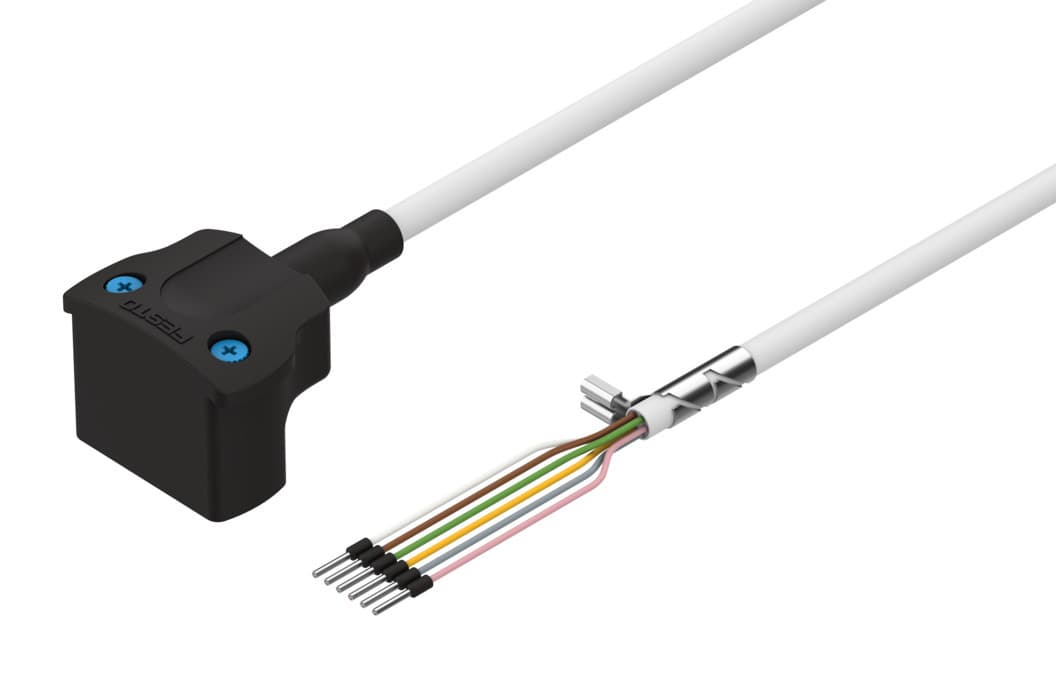

nebm-s1w9-e-7-q5-le6
Selling Points
- 1High-Quality Material: The NEBM-S1W9-E-7-Q5-LE6 motor cable features a TPE-U(PUR) cable sheath, ensuring durability and resistance to various environmental conditions.
- 2IP65 Protection: This motor cable offers an IP65 degree of protection, making it suitable for harsh industrial environments and ensuring reliable performance.
- 3Flexible Installation: With a bending radius of 62 mm, the NEBM-S1W9-E-7-Q5-LE6 cable is designed for flexible installation, allowing easy integration into complex systems.
- 4Wide Operating Range: The cable operates within a DC voltage range of 0 to 72 V, making it versatile for various motor applications.
- 5Temperature Resistance: The cable can withstand ambient temperatures ranging from -40°C to 80°C, ensuring reliable performance in diverse temperature conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Sub-D |
Electrical connection 1, number of pins/wires | 9 | Electrical connection 1, occupied pins/wires | 6 |
Electrical connection for input 1, connection pattern | 00995638 | Electrical connection 2, function | Control side |
Electrical connection 2, connection type | Cable | Electrical connection 2, connection technology | Open end |
Electrical connection 2, number of pins/wires | 6 | Electrical connection 2, occupied pins/wires | 6 |
DC operating voltage range | 0V 72V | Nominal operating voltage DC | 24V |
Shield | yes | Cable length | 7m |
Cable characteristic | Suitable for energy chains | Bending radius, flexible cable installation | 62mm |
Cable diameter | 6.2mm | Cable design | 6 x 0.34 mm2 |
Nominal conductor cross section | 0.34mm2 | Wire ends | Cable end sleeve |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Ambient temperature | -40°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Manufacturer ID | 1450739 |
Specifications may be subject to change without notice
