Product Model
nebm-t12g4-r-3-le4
Selling Points

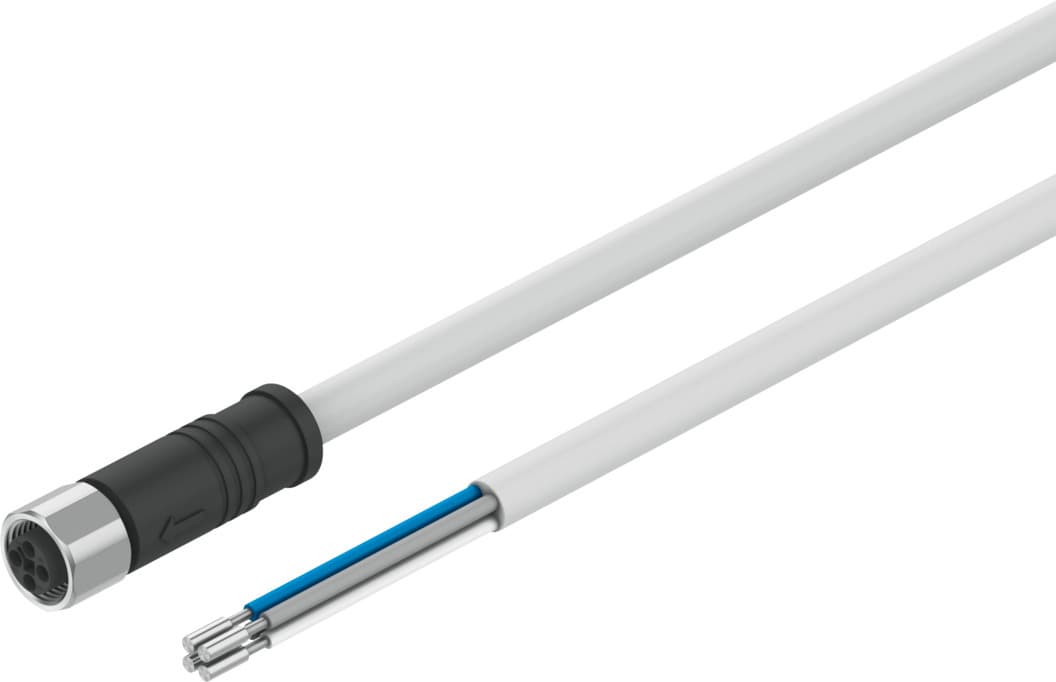

- 1The Festo NEBM-T12G4-R-3-LE4 connecting cable features a M12x1 T-coded socket, ensuring reliable and secure electrical connections for your robot applications.
- 2Designed for use in energy chains, this cable maintains its integrity even under dynamic conditions, making it perfect for applications where cables are subject to movement.
- 3With an IP67 rating, this cable provides excellent protection against dust and water, ensuring it can operate safely in harsh environments.
- 4The cable has a bending radius of 75 mm for flexible installations and 30 mm for fixed installations, allowing for versatile use in various robotic setups.
- 5The Festo NEBM-T12G4-R-3-LE4 cable meets the standards of EN 61076-2-111 and is compliant with EU RoHS Directive, ensuring it meets the highest quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61076-2-111 | Cable designation | With label holder |
Product weight | 256g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1, T-coded as per EN 61076-2-111 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | Socket, M12x1 T-coded as per EN 61076-2-111, 4-pole |
Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, occupied pins/wires | 4 | DC operating voltage range | 0V 60V |
Current rating at 40° C | 5A | Surge resistance | 1.5kV |
Shield | no | Cable length | 3m |
Cable characteristic | Suitable for robot applications | Connector cable test conditions | Test conditions on request |
Bending radius, fixed cable installation | 30mm | Bending radius, flexible cable installation | 75mm |
Cable diameter | 7.5mm | Cable diameter tolerance | ± 0.2 mm |
Cable design | 4 x 0.75 mm2 | Nominal conductor cross section | AWG19 |
Wire ends | Stripped | Degree of protection | IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
Ambient temperature with flexible cable installation | -20°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
Note on materials | RoHS-compliant | Contamination level | 3 |
Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
Color cable sheath | Black | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | High-alloy stainless steel |
Seals material | HNBR | Material of pin contacts | Brass, gold-plated |
Insulating sheath material | PVC | Manufacturer ID | 8140935 |
Specifications may be subject to change without notice
