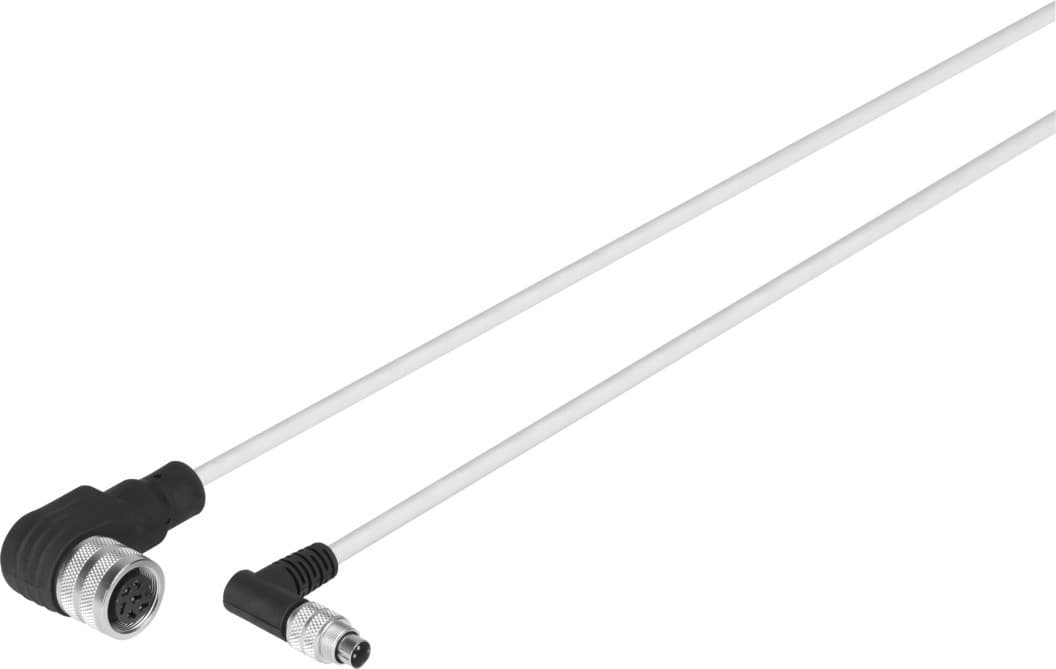

Product Model
nebp-m16w6-k-2-m9w5
Selling Points
- 1Angled sockets and plugs ensure secure connections.
- 20.5 kV surge immunity for reliable operation.
- 3Meets stringent environmental regulations.
- 42 m length with a 5.5 mm diameter for long-lasting performance.
- 5Suitable for energy chains and various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Additional functions | Product-specific pin allocation | Cable designation | With accessories |
Product weight | 160g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M16x0.75 |
Electrical connection 1, number of pins/wires | 6 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | 00995709 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Angled |
Electrical connection 2, connection technology | M9x0.5 | Electrical connection 2, number of pins/wires | 5 |
Electrical connection 2, occupied pins/wires | 4 | Electrical connection 2, type of mounting | Screw-type lock |
Electrical connection 2, connection pattern | 00995745 | DC operating voltage range | 0V 30V |
Current rating at 40° C | 3A | Note on acceptable current load at 40°C | 2.3 A for 0.34 mm2 3.6 A for 0.49 mm2 |
Surge resistance | 0.5kV | Shield | yes |
Cable length | 2m | Cable characteristic | Suitable for energy chains |
Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 75mm |
Cable diameter | 5.5mm | Cable design | 2 x 0.25 mm2 + 2 x 0.34 mm2 + 0.49 mm2 |
Nominal conductor cross section | 0.34mm2 | Degree of protection | IP65 IP67 |
Note on degree of protection | In mounted state | Ambient temperature | -20°C 70°C |
Ambient temperature with flexible cable installation | -5°C 70°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Contamination level | 1 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Material of cable sheath | TPE-U(PUR) |
Color cable sheath | Light gray | Housing material | TPE-U(PUR) |
Housing colour | Black | Material of screw-type lock | Brass, nickel-plated |
Material of pin contacts | Bronze, gold-plated Brass, gold-plated | Insulating sheath material | TPE-U(PUR) |
Manufacturer ID | 575898 |
Specifications may be subject to change without notice
