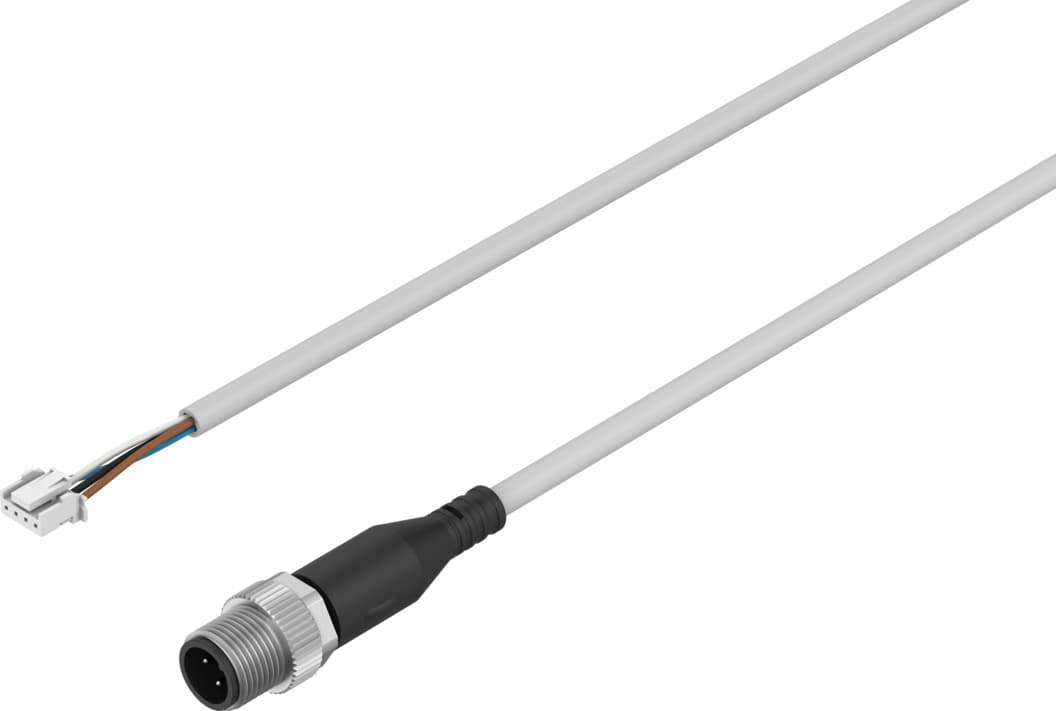

Product Model
nebs-l1g4-k-1-n-m12g4
Selling Points
- 1Reliable Field Device Connections: Connects field devices with high durability and precision.
- 2IP65, IP67, and IP69K Protection: Ensures robust protection against dust and water in harsh environments.
- 3Snap-in Locking Mechanism: Easy to install with a secure snap-in locking system.
- 4DC Operating Voltage Range: Operates within 0V to 30V DC, suitable for various industrial applications.
- 5RoHS-Compliant and Halogen-Free: Meets EU and UK RoHS directives, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable designation | Without label holder | Contact durability | 100 |
Product weight | 40g | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram L1J |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995720 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, occupied pins/wires | 4 | Electrical connection 2, type of mounting | Screw-type lock with hexagon AF 13 and longitudinal knurl |
Electrical connection 2, connection pattern | 00995386 | DC operating voltage range | 0V 30V |
Current rating at 40° C | 1A | Surge resistance | 0.8kV |
Cable length | 1m | Cable characteristic | Standard |
Connector cable test conditions | Test conditions on request | Bending radius, fixed cable installation | 14mm |
Bending radius, flexible cable installation | 46mm | Cable diameter | 4.5mm |
Cable diameter tolerance | ± 0.1 mm | Cable design | 4 x 0.25 mm2 |
Nominal conductor cross section | 0.25mm2 | Degree of protection | IP65 IP67 IP69K |
Note on degree of protection | IP40 for plug connection pattern L1J In mounted state | Ambient temperature | -20°C 60°C |
Ambient temperature with flexible cable installation | -5°C 60°C | Storage temperature | -20°C 60°C |
CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant Halogen-free |
Contamination level | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | PA TPE-U(PUR) | Housing colour | Black White |
Material of screw-type lock | Brass, nickel-plated | Material of pin contacts | Tin-plated bronze Brass, gold-plated |
Insulating sheath material | PP | Manufacturer ID | 8091514 |
Specifications may be subject to change without notice
